Structural Framing
Engineered to protect against what wood and steel simply cannot. Designed to install like the lumber you use every day. Made to last.
KDAT LUMBER VS.
OWENS CORNING LUMBER STRUCTURAL FRAMING
In this video, two framing lumbers are put to the test. From price and ease of build to quality and durability, Jon Dawson breaks it all down to see which material stands above the rest. This is the side-by-side comparison every builder has been waiting for.
FASTER INSTALL
Productivity Accelerator: Material arrives ready to frame without traditional prep-work and sorting.
Labor Optimizations: Rotproof and ground/water contact rated means no wasted time on taping and coating before installation.
Same Tools, Same Trade, Same Practices: Jobs get framed the way crews are used to building.
More Referrals, Less Callbacks: Builds stand tall as intended without PTL failures from cupping, warping, rotting and splintering.
Proven Solution to Combat #1 Premature Failure: A better ledger board ensures stability, strength and safe-use for all.
FINISHED FRAMING
Outdoor Living Designed for More Life Outdoors: Higher performing framing creates time-tested spaces.
Unlock New Designs: Classic woodgrain finish available in a palette of modern colorways.
Fascia-Free Install: No need to hide your framing with fascia and additional hardware/accessories.
Uncompromised Performance: Powered by Owens Corning's material science to ensure builds stand tall in all seasons.
Code Approved: Easy to reference product certifications from the leader brand in building products (DRJ / CBI) makes inspection easier.
PROFILES AND PERFORMANCE
Owens Corning Lumber is available in North America. Check custom lengths and colors availability with your Owens Corning representative. Product samples are available upon request.
NOMINAL SIZE | ACTUAL SIZE | AVAILABLE LENGTHS | WEIGHT PER LINEAL FOOT | UNIT SIZE |
|---|---|---|---|---|
2" x 4" | 1.5" x 3.5" | 12' - 16' - 20' | 1.75 lbs | 42 |
2" x 6" | 1.5" x 5.5" | 12' - 16' - 20' | 2.90lbs | 64 |
2" x 8" | 1.5" x 7.5" | 12' - 16' - 20' | 4.00lbs | 42 |
2" x 10" | 1.5" x 9.25" | 12' - 16' - 20' | 4.85lbs | 35 |
2" x 12" | 1.5" x 11.25" | 12' - 16' - 20' | 5.85lbs | 16 |
4" x 4" | 3.5" x 3.5" | 8' - 10' - 12' - 16' | 3.25lbs | 39 |
6" x 6" | 5.5" x 5.5" | 8' - 10' - 12' - 16' | 6.00lbs | 24 |

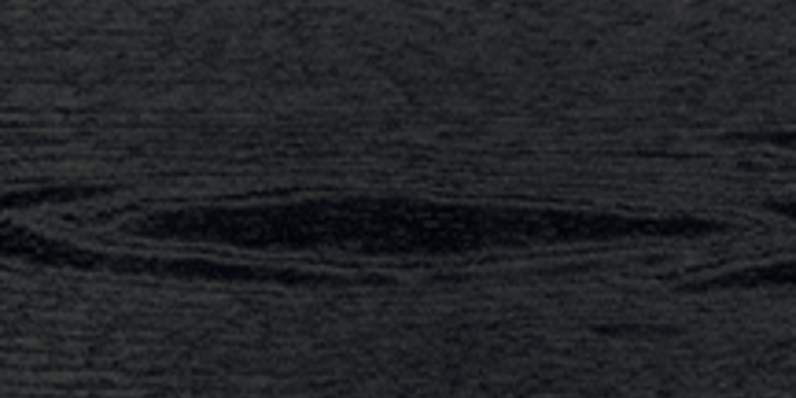

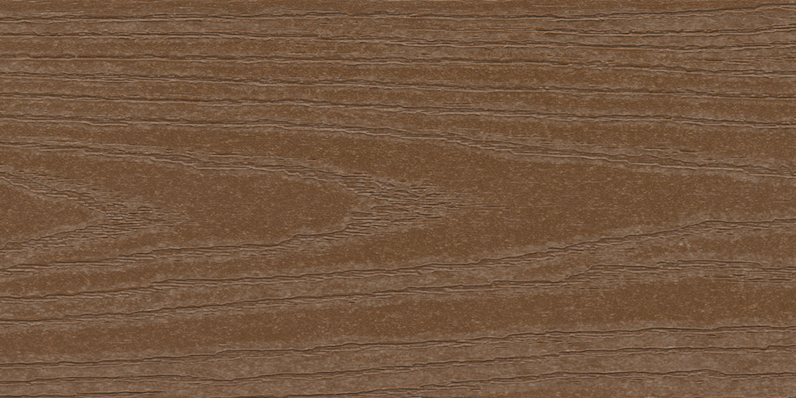

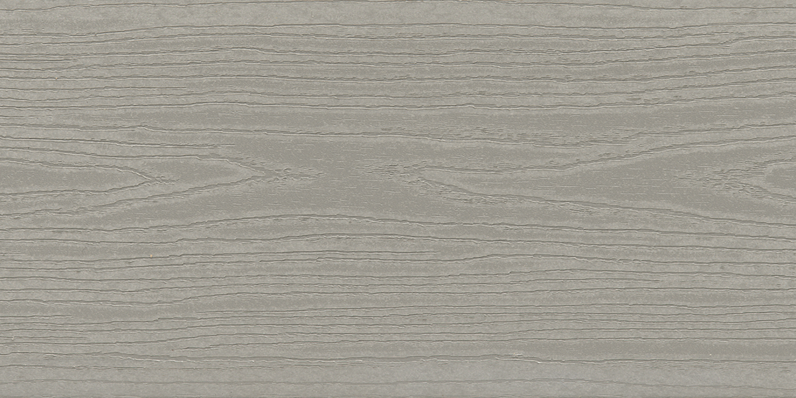

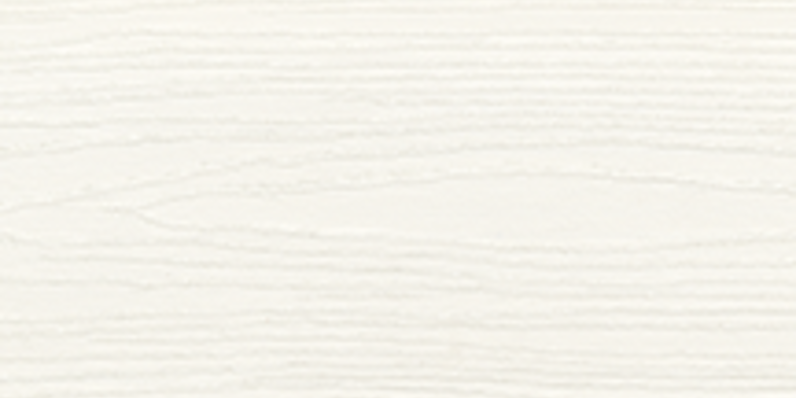

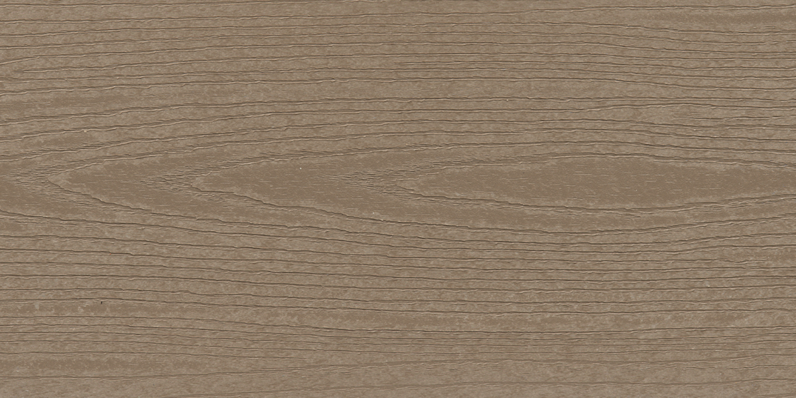

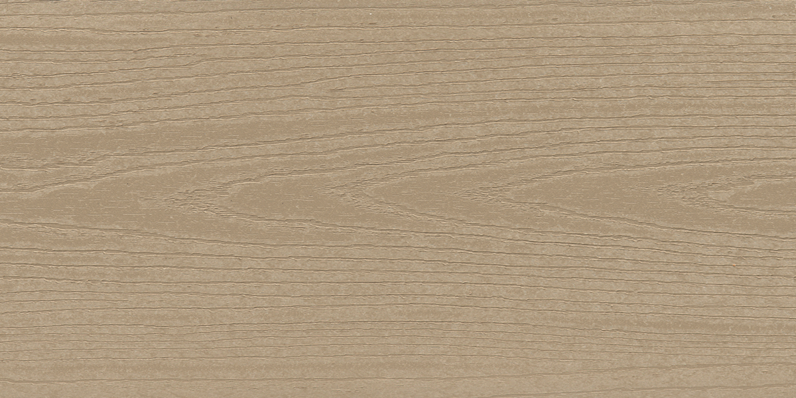

STRUCTURAL FRAMING COLORWAYS
We offer a curated palette of durable, colorways that combine aesthetic appeal with high-performance materials. Here are the standard and special color options available:
2X Profiles
All five profiles will have a woodgrain finish. Actual product colors may vary due to printing or screen settings.
4X4 and 6X6 Profiles
4”x4” Posts will have a woodgrain finish. Actual product colors may vary due to printing or screen settings.
Engineered to Protect Against What PTL AnD Steel Simply Cannot
Unlike steel and ptl, this Structural Framing is a GLAS-POWERED® lumber that delivers strength from the inside out. Its enhanced wood-free design is reinforced with fiberglass technology, making it rotproof, rustproof and impervious to wood-born insects.This powerful ingredient ensures that the Structural Framing holds up exceptionally well under high live loads with durability that lasts a lifetime.

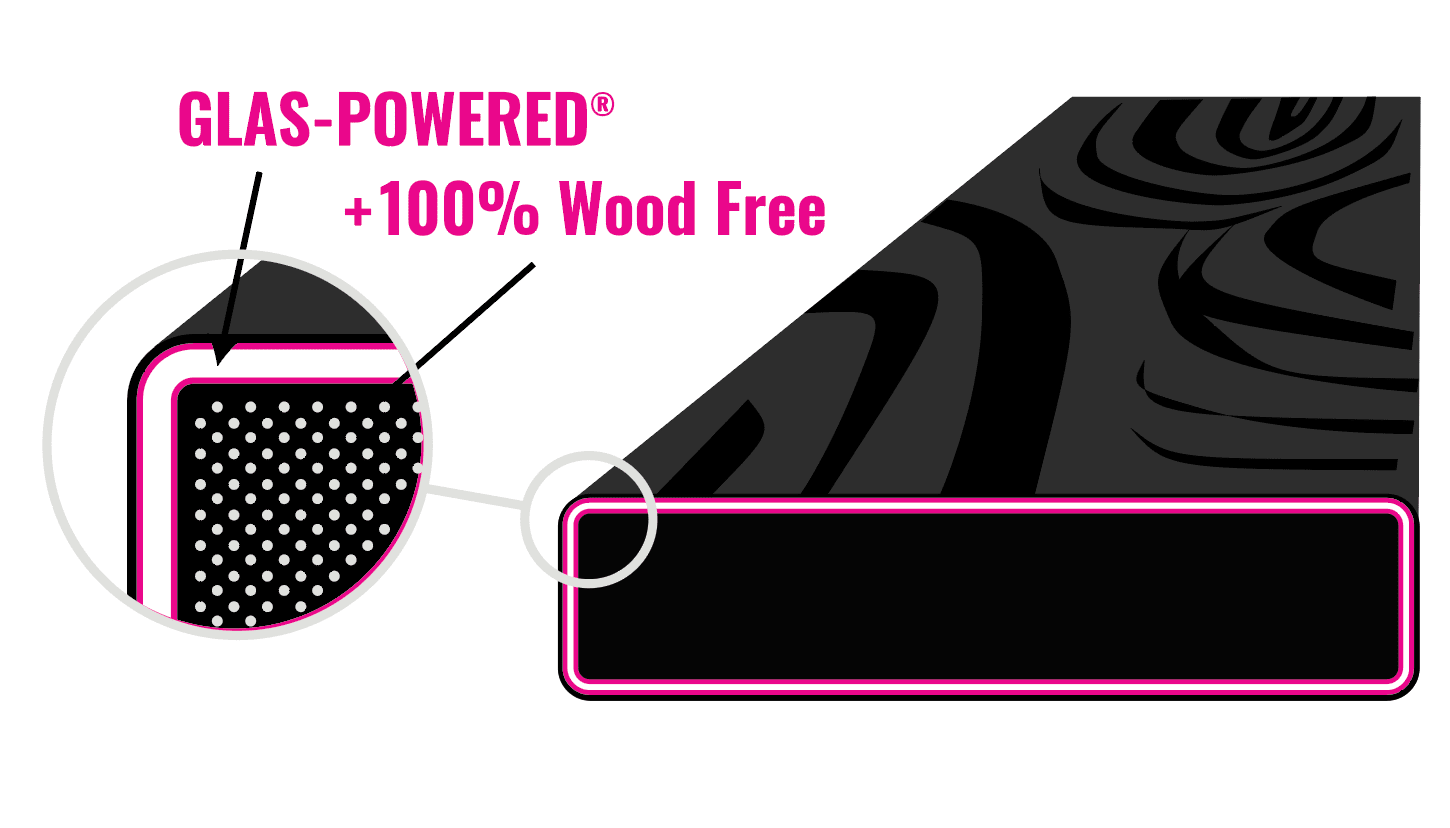

This graphic illustration showcases the internal structure and benefits of our GLAS-POWERED® lumber. It is a conceptual representation—not a photograph of the actual product.
BUILT FOR WHAT YOU BUILD
From the first ledger board to the final fence post, Owens Corning Structural Framing is engineered to meet the demands of real-world builds. Whether you're installing a deck or dock, crafting a pergola, laying out stair stringers, or securing a fence line, this material is ready to perform — rotproof, water and ground contact rated, and built for the longterm. No coatings, no prep, no compromises.

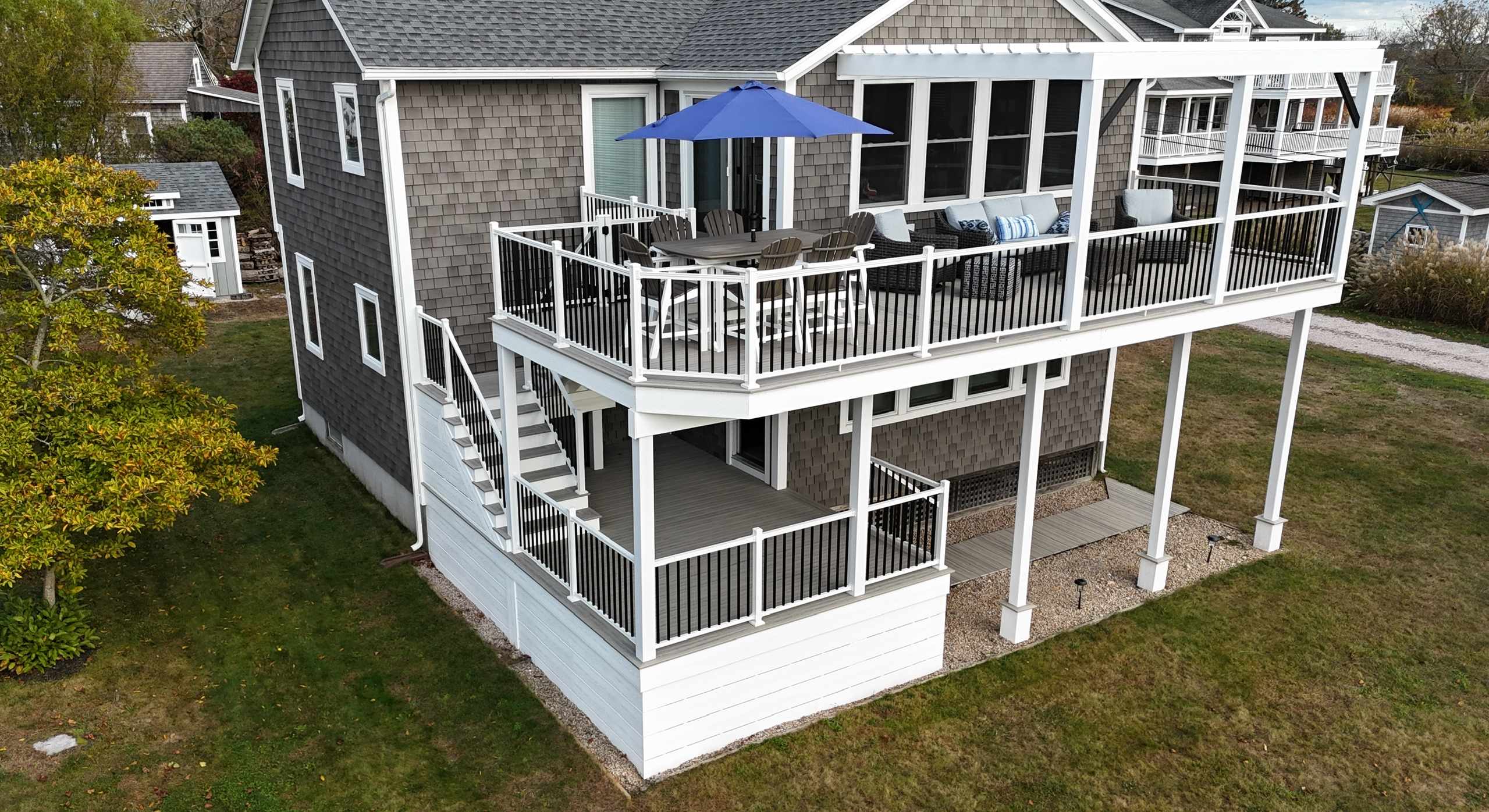

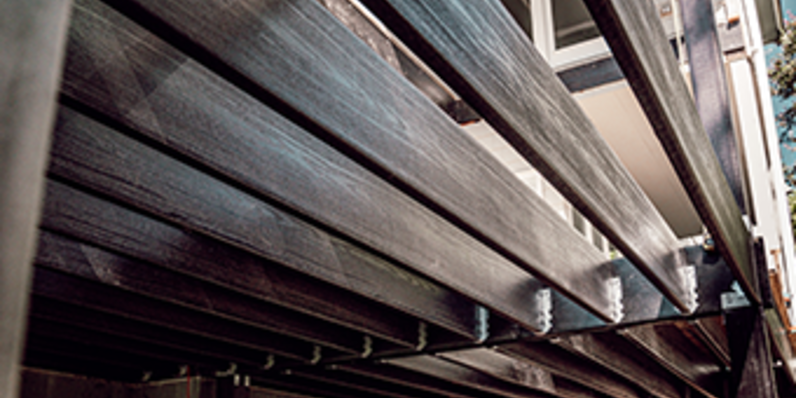

Deck FRAMING INSTALLATION
Build stronger, longer-lasting decks with Owens Corning Structural Framing. This guide covers everything from deck planning to the final deck board and everything in between. The perfect guide to helping you build it right the first time.

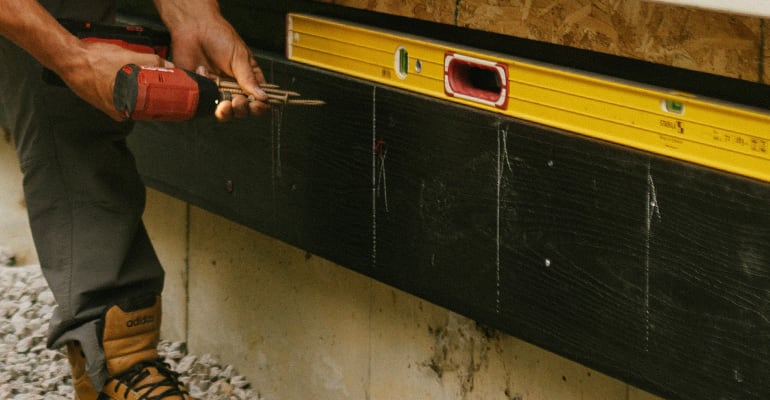

LEDGER BOARD SAFETY
A rotted ledger board can lead to a failed deck, posing serious safety risks. That’s why the most important structural component of your project deserves the highest performing material. Using Owens Corning Lumber for your ledgers means better resistance to rot and decay, stronger, more reliable connections and reduced risk of structural failure over time

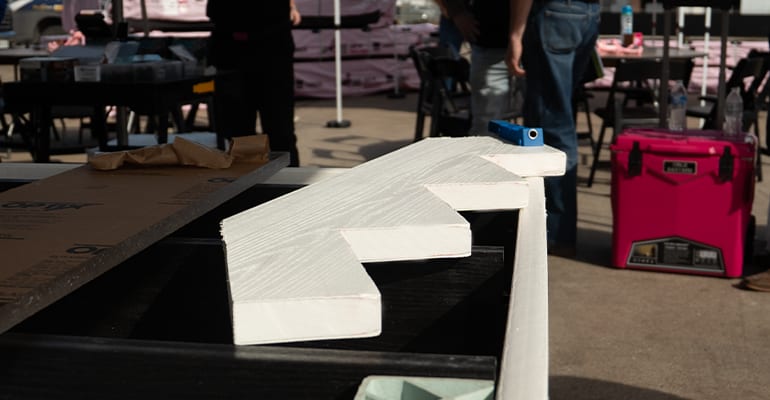

Stair STRINGER INSTALlATION
Ensuring your stair stringers are correctly installed is crucial for the safety and durability of your stairs. That’s why using Owens Corning Lumber Structural Framing for your stair stringers is a smart choice—it’s strong, reliable, and built to last.
The TEXAS FENCE PROJECT
Canadian carpenter Chuck Francis heads down to Texas to spend a week with rancher and carpenter Jon Dawson. The duo build an arena fence out of Owens Corning Lumber Structural Framing and Posts plus have some fun transforming Chuck into a true cowboy.
Material Take oFF TOOl
Enter details below to download a material takeoff estimate for your project. This tool is not intended for design. For more information on designing with Owens Corning Lumber Structural Framing see our technical documentation here.
Rectangular shape assumed. If deck is not Rectangular, break up into Rectangular sections
If entering additional items, all fields are required. Please consult with the install guide to ensure that beams and posts are adequately sized based upon the joist spans they are supporting
| Type | Size | Standard Length (ft) | Board Quantity | Recommended Overage | Total Order Quantity |
|---|---|---|---|---|---|
| joist | -- | -- | -- | -- | -- |
| rim | -- | -- | -- | -- | -- |
| ledger | -- | -- | -- | -- | -- |
| deck | -- | -- | -- | -- | -- |
| beams | -- | -- | -- | -- | -- |
| posts | -- | -- | -- | -- | -- |
| overage | -- | -- | -- | -- | -- |
Footnotes:
Standard board lengths are 12', 16', 20' & 24'
Stairs and stair stringers are not included within this takeoff. Please see install guide for information on stairs
Depending on the handrail system being used, ensure adequate blocking per handrail manufacturer recommendation or follow AWC DCA-6 for handrail attachment
The material estimates provided by the Material Takeoff are intended for informational purposed only. These values are approximations and should not be considered as final or binding. It is the responsibility of the builder to verify all quantities and specifications before placing any orders. Owens Corning assumes no liability for any discrepancies or errors in the estimates. Use of this estimator is at the user’s own risk.
