Thermafiber® Aluminum Foil & FSK Insulation Tape | Owens Corning Insulation
Owens Corning

Thermafiber® Aluminum Foil and FSK Tapes are engineered to provide a vapor seal between curtain wall mullions and FSP-faced FireSpan® curtain wall insulation or other foil-faced Thermafiber® insulation products. This tape helps keep foil-faced insulation sealed tightly, which helps block moisture and supports the overall thermal efficiency of the wall system. These FSK and aluminum foil insulation tapes are the ultimate in cold-weather tapes.

Aluminum Foil Tape: A strong, 2 mil aluminum insulation tape with a high-temperature adhesive, commonly used to seal and secure insulation joints for better thermal performance.

FSK Tape: A tough, fire-rated foil/scrim/kraft (FSK) tape used to seal foil-faced insulation, helping provide added strength and fire resistance to the insulation system.

Features:

  • Vapor Seal - Helps seal seams and edges of foil-faced insulation.
  • Adhesion in Varying Climates - Performs in hot, moderate, and cold weather.
  • Flexible Application - Conforms to irregular surfaces and corners.
  • Durable Protection - Resists weathering, mold, UV, and environmental exposure.
  • UL 723 classified - Tested for surface burning characteristics.
Download Product Data Sheet

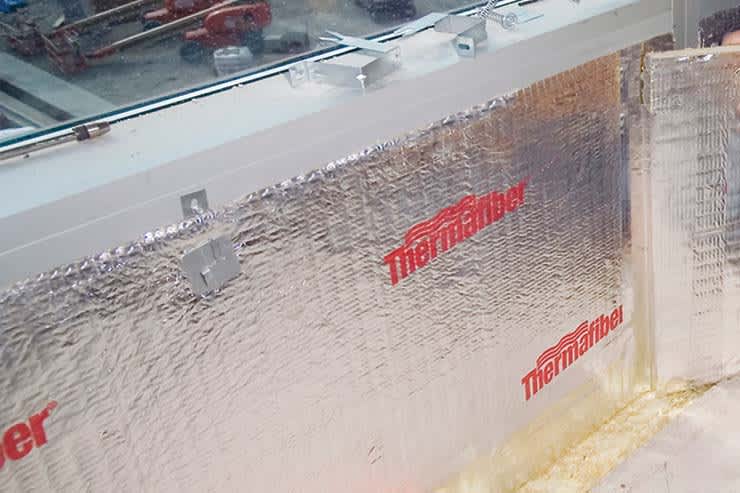

Thermafiber aluminum foil installed on a section of wall

Specifications & Literature

When Life Safety Matters Most

Owens Corning® Thermafiber® is committed to providing solutions that help the commercial building professional confidently design, specify, and install durable perimeter fire containment systems for commercial structures.

Learn More

Technical Information

Standards, Codes Compliance

ASTM C 1136FSK Tape, Meets
UL File NumberR10984
U.S. Coast GuardAluminum Foil Tape (CGA #164.112/63/0) (CGA#164.112/121/WCL MED 0287)

Technical Data


ALUmINUM FOIL TAPE

FSK TAPE


IMPERIAL

METRIC

IMPERIAL

METRIC

Thickness3.2 mils (0.0032")0.08 mm5.5 mils (0.0065”)0.14 mm
180º Peel Adhesion - Peel (PSTC 1)51 oz/inch width5.6 N/cm66 oz/inch width18.3 N/2.5cm
Tensile (PSTC 31)21 lbs/inch width36.8 N/cm39 lbs/inch width68.3 N/cm
Elongation (PSTC 31)9%9%2%2%
Low Temperature Application-40°F-40°C-40°F-40°C
High Temperature Resistance260°F127°C240°F116°C
Emittance (ASTM C 1371)0.03–0.03-
WVTR (ASTM E 96 Proc. A)0.02 U.S. Perms–0.02 U.S. Perms–
Flame Spread (ASTM E 84)10101010
Smoke Developed (ASTM E 84)10101010

Applications

Thermafiber® Aluminum Foil and FSK Tapes seal joints where foil-faced mineral wool insulation meets framing or connects between panels in exterior commercial insulation wall systems. These fire-resistant insulation tapes perform in both cold and hot climates, making this foil tape for insulation ideal for high-rise buildings exposed to snow, wind, humidity, or changing seasonal conditions.

  • Accessories and Specialty
  • Walls
