Steel Stud Wall Masonry Veneer
XPS CI with Taped XPS Joints AWB
Overview
Overview

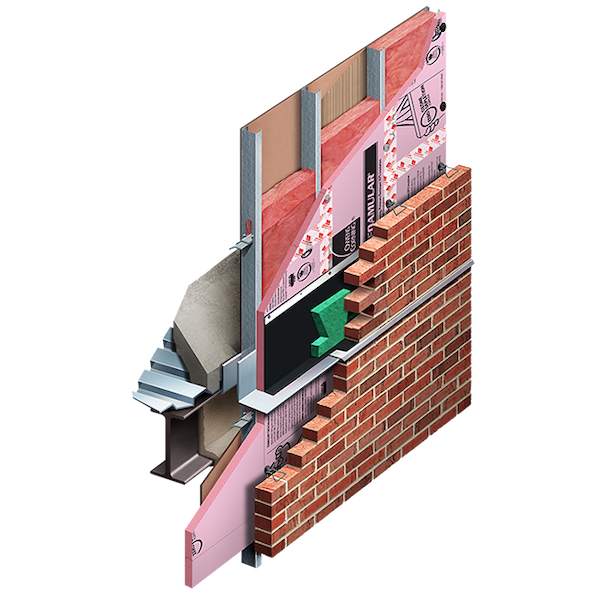

This Enclosure Solutions Wall System includes steel stud structure with masonry veneer, XPS continuous insulation with tape flashing as the AWB, & fiberglass cavity batt insulation. By selecting correct components, it complies with NFPA 285 (fire), ASTM E119 (fire), ASTM E2357 (air), & ASTM E331 (water).
Get all the construction documentation you'll need, in a single click:
Specifications and Literature
Data Sheets (10)
Sell Sheets (5)
Brochures (6)
Guide Specifications (13)
Technical Documentation (13)
Warranty (3)
Installation Instructions (10)
Case Studies (23)
Environmental Product Declarations (10)
UL Testing (1)
LEED (6)
Safety Documents
Certifications (1)
Submittal Documents (2)
Code Compliance (5)
Products In This Solution
Additional Products
Additional Products
Sold Separately
- Interior Gypsum Board
- Galvanized Steel Studs
- Exterior Gypsum Sheathing
- Air & Water Sealing Fasteners
- Through Wall Flashing
- Masonry Veneer Anchors
- Mortar Drop Protection
- Brick Veneer
- Weep Hole Inserts
Performance Attributes
Durability
Easy Installation
Recycled Materials
Thermal Comfort
ASHRAE 90.1
ASHRAE 90.1
ASHRAE Standard 90.1 requires Continuous Insulation (CI) be used for all commercial and some residential buildings in the United States. Continuous insulation is defined in 90.1 as “insulation that is continuous across all structural members without thermal bridges other than fasteners and service openings. It is installed on the interior, exterior, or is integral to any opaque surface of the building envelope”.
ASTM E2307
ASTM E2307
ASTM E2307 measures the ability of perimeter fire barrier systems to maintain a seal and prevent interior fire spread as the exterior wall assembly deflects and deforms during fire exposure. The ASTM E2307 test exposes the joint to fire from the room of fire origin and the exterior wall to fire from both the interior and the exterior as the fire plume exits the room of fire origin through a window opening. ASTM E 2307 determines the period of time that the perimeter fire containment system will limit flame penetration through the opening between the exterior wall assembly and the floor assembly.
NFPA 285 Compliant
NFPA 285 Compliant
NFPA 285 is required in the International Building Code (IBC) in multiple situations. The NFPA 285 test is to determine that combustibles, when exposed to fire on the exterior face of the wall, do not spread flame over the surface or through the core of the otherwise non-combustible wall assembly.
Additional Attributes and Compliance
Additional Attributes and Compliance
This wall assembly enclosure also meets the following codes and standards. Click a standard to learn more
Drawings
Bim Objects
Bim Objects
Construction Details including BIM objects and CAD drawing files for Steel Stud Enclosure Solutions Wall Systems are available for download below.
OWENS CORNING ENCLOSURE SOLUTIONS STEEL STUD WALL
with Brick Veneer & FOAMULAR 250 XPS CI
RVT 940 KB
CAD Files
CAD Files
FOAMULAR® 250 XPS CI AND AWB

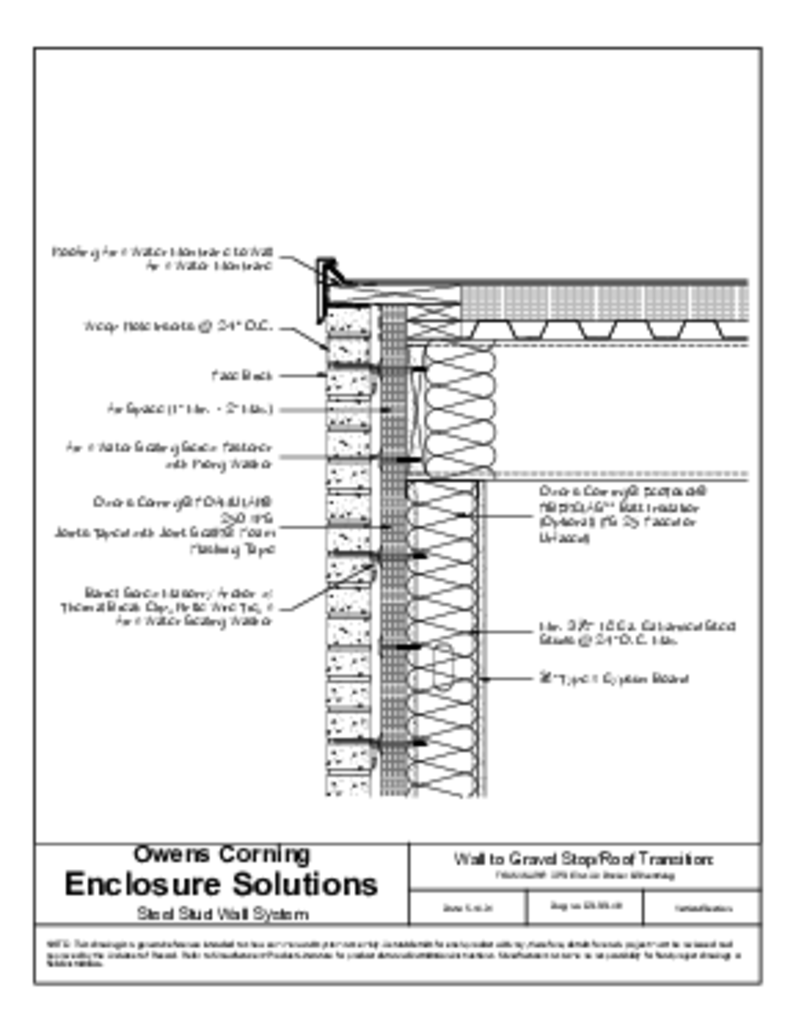

Wall to Gravel Stop/ Roof Transition
DWG 95.95KB
FOAMULAR® 250 XPS CI AND AWB

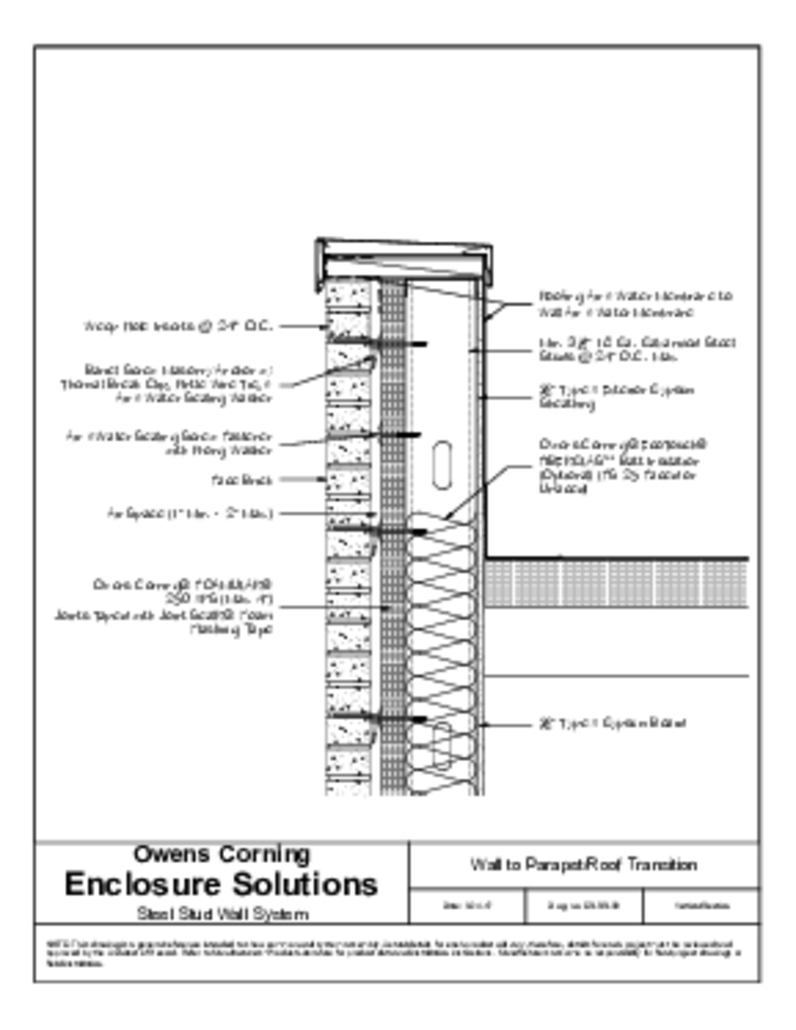

Wall to Parapet/ Roof Transition
DWG 120.65 KB
FOAMULAR® 250 XPS CI AND AWB

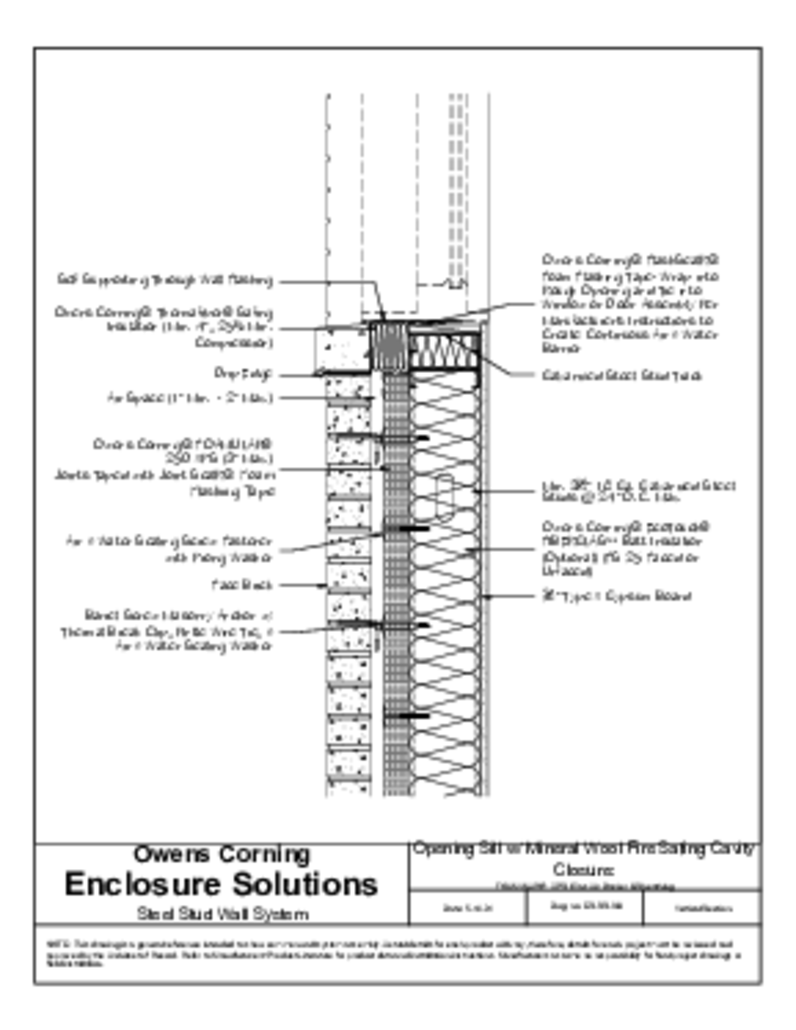

Thermafiber Safing Cavity Closure
DWG 82.64 KB
FOAMULAR® 250 XPS CI AND AWB

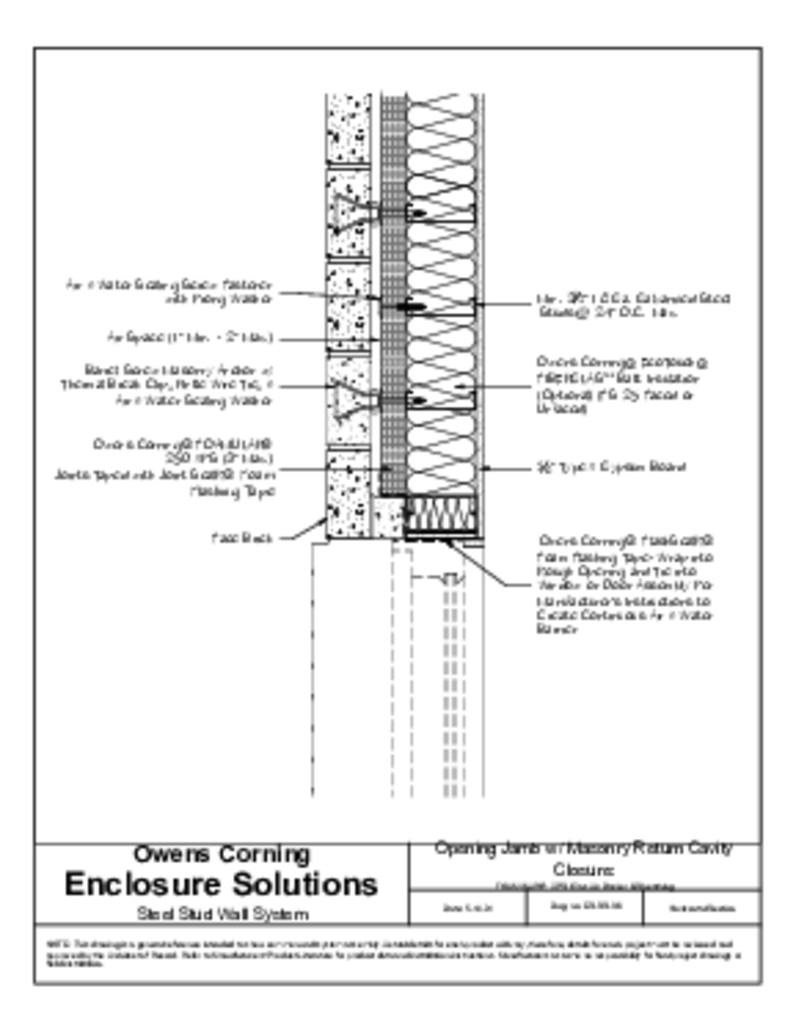

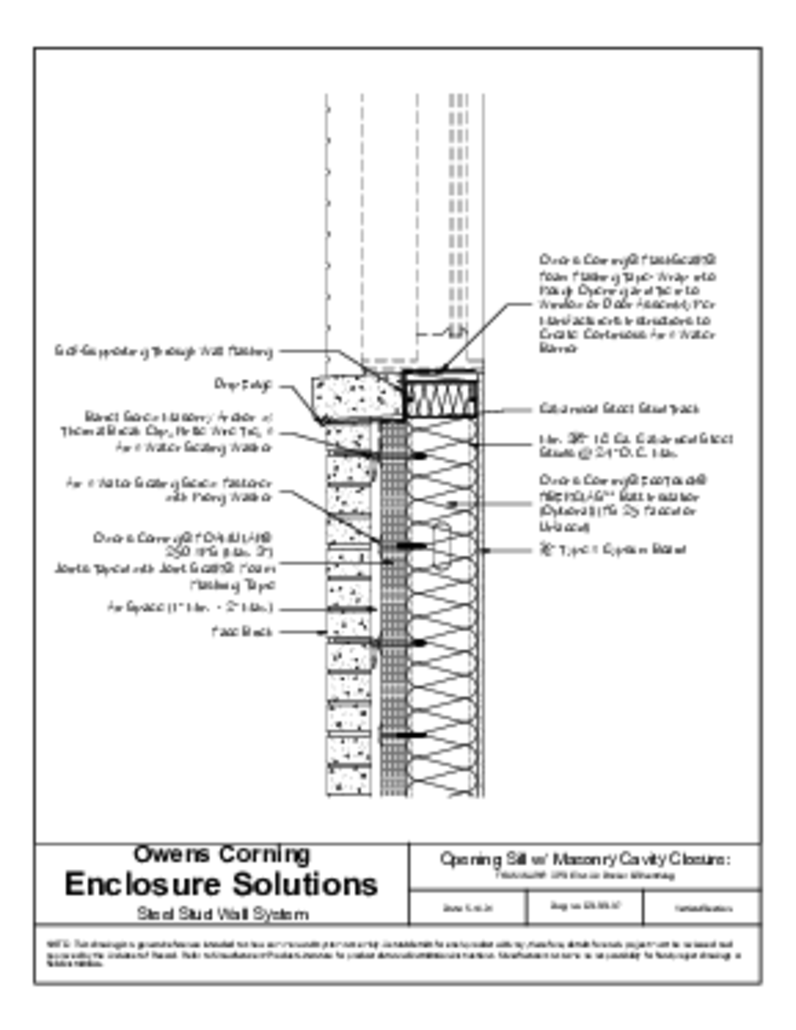

Masonry Cavity Closure
DWG 96.91 KB
FOAMULAR® 250 XPS CI AND AWB
Masonry Cavity Closure
DWG 92.36 KB
FOAMULAR® 250 XPS CI AND AWB

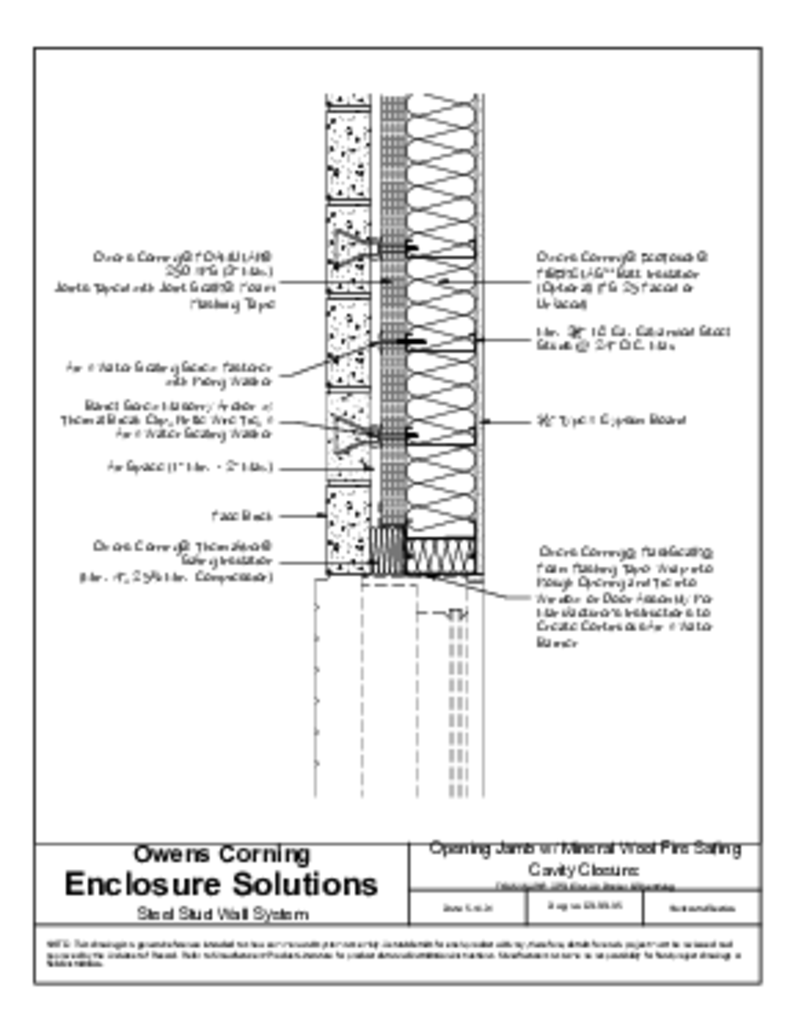

Thermafiber Safing Cavity Closure
DWG 96.54 KB
FOAMULAR® 250 XPS CI AND AWB

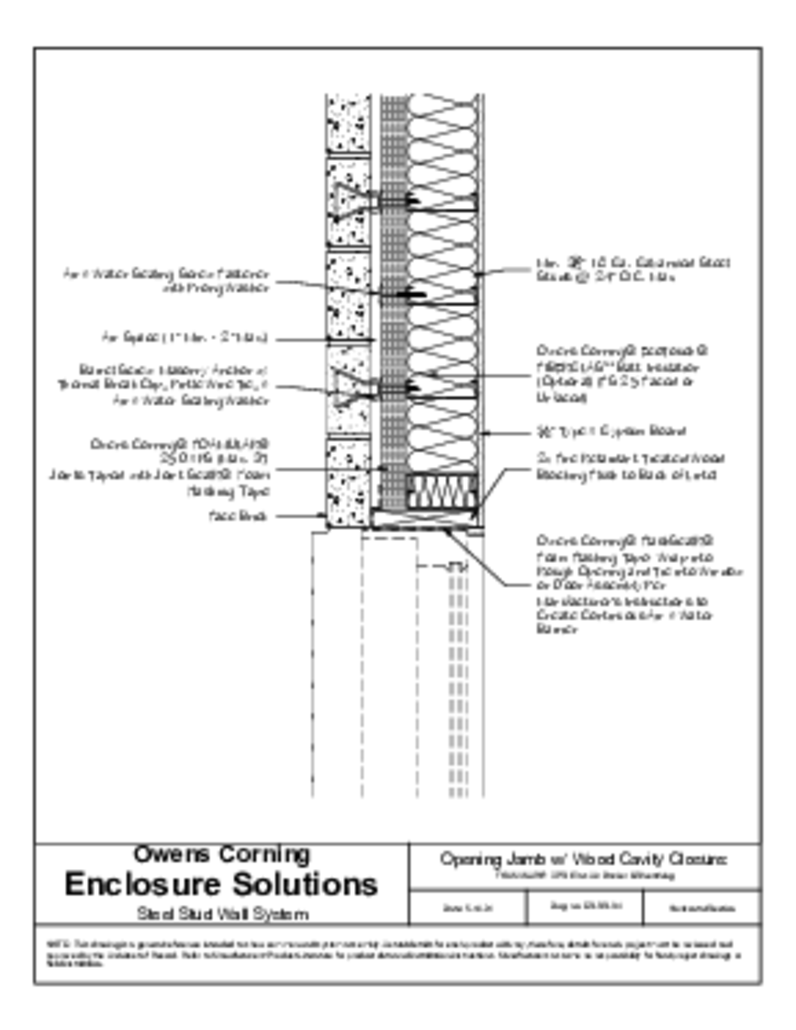

FRTW Blocking Cavity Closure
DWG 136.08 KB
FOAMULAR® 250 XPS CI AND AWB

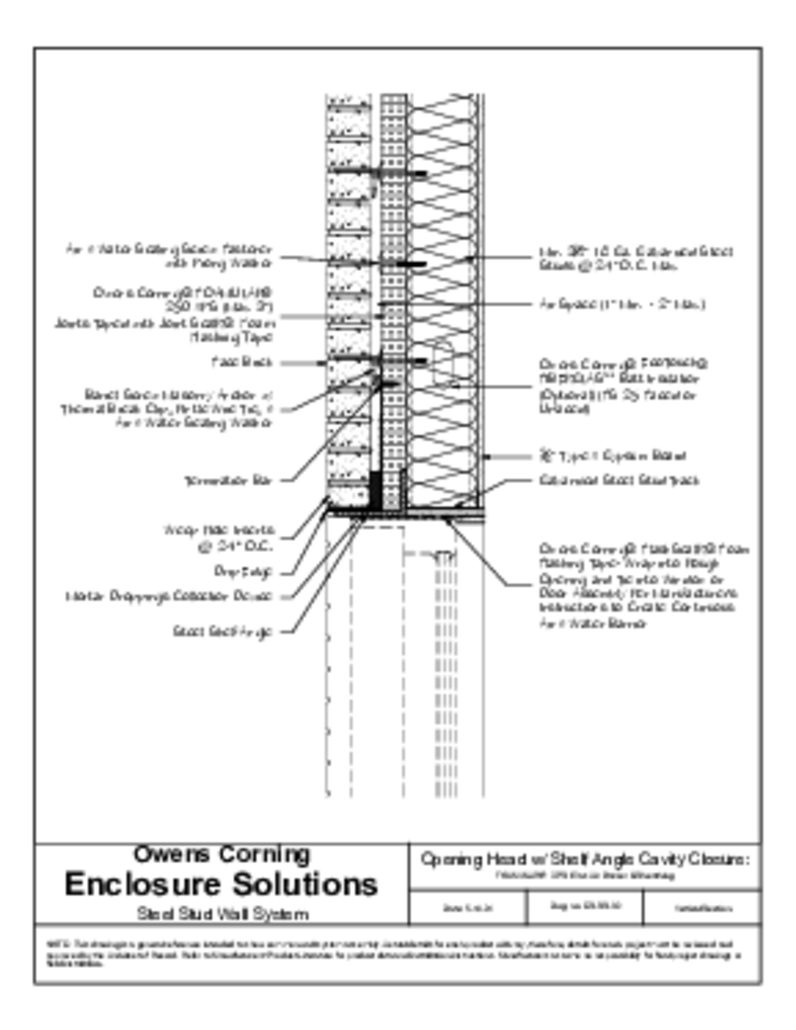

Steel Angle Cavity Closure
DWG 85.03 KB
FOAMULAR® 250 XPS CI AND AWB
FRTW Blocking and Loose Angle Cavity Closure
DWG 93.55 KB
FOAMULAR® 250 XPS CI AND AWB

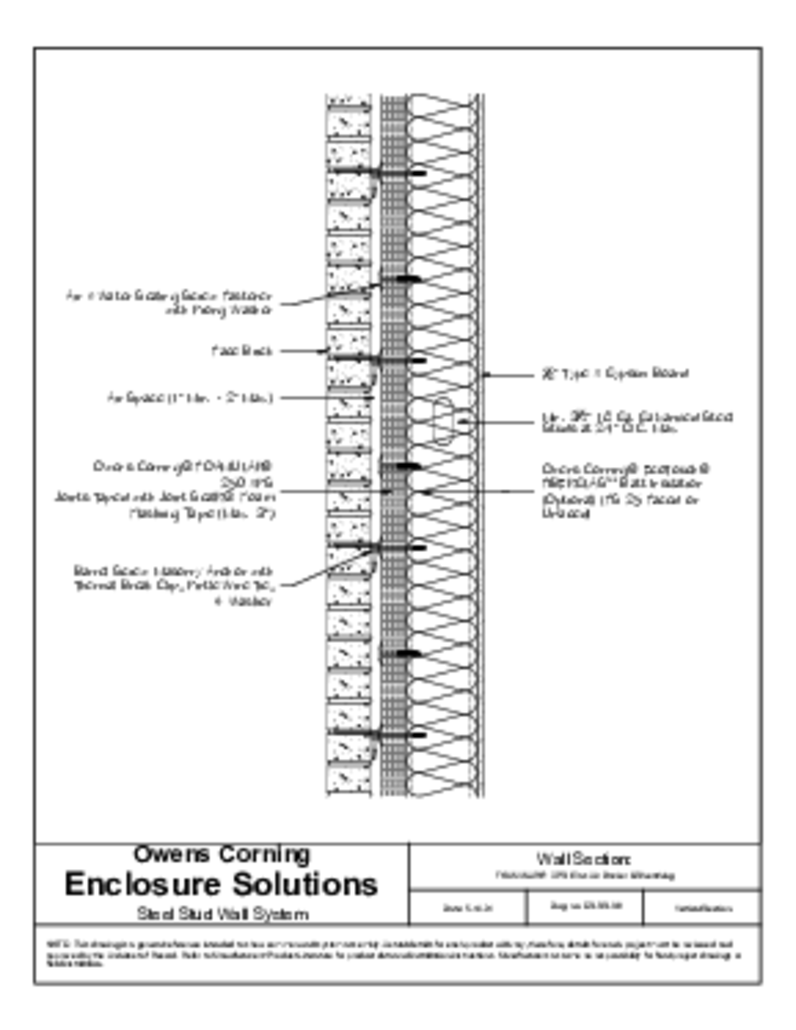

Wall Section
