CMU Wall Laminate Panel (HDL/HPL) Veneer
Mineral Wool CI Fluid or Sheet AWB
Overview
Overview

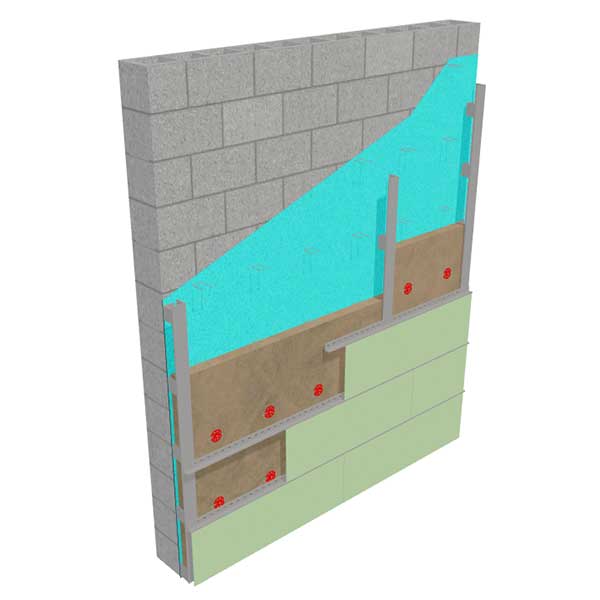

This Enclosure Solutions Wall System includes a concrete masonry unit (CMU) structure with laminate panel (HDL/HPL) veneer, mineral wool continuous insulation, with fluid or sheet AWB. By selecting correct components, it complies with NFPA 285(fire), ASTM E119(fire), ASTM E2357(air), & ASTM E331(water).
Get all the construction documentation you'll need, in a single click:
Specifications and Literature
Data Sheets (7)
Brochures (2)
Code Compliance (4)
Technical Documentation (3)
Warranty (2)
LEED (7)
Installation Instructions (1)
Safety Documents
Products In This Solution
Thermafiber® RainBarrier® Mineral Wool insulation
Thermafiber® RainBarrier® Clip
Thermafiber® Safing insulation
Additional Products
Additional Products
Sold Separately
- CMU
- Air and Water Barrier (AWB)
- Cladding Attachment System
- High Pressure Laminate Panels
Performance Attributes
Durability
Easy Installation
Fire Resistance
Thermal Comfort
ASHRAE 90.1
ASHRAE 90.1
ASHRAE Standard 90.1 requires Continuous insulation (CI) be used for all commercial and some residential buildings in the United States. Continuous insulation is defined in 90.1 as “insulation that is continuous across all structural members without thermal bridges other than fasteners and service openings. It is installed on the interior, exterior, or is integral to any opaque surface of the building envelope”.
NFPA 285 Compliant
NFPA 285 Compliant
NFPA 285 is required in the International Building Code (IBC) in multiple situations. The NFPA 285 test is to determine that combustibles, when exposed to fire on the exterior face of the wall, do not spread flame over the surface or through the core of the otherwise non-combustible wall assembly.
ASTM E2307
ASTM E2307
ASTM E2307 measures the ability of perimeter fire barrier systems to maintain a seal and prevent interior fire spread as the exterior wall assembly deflects and deforms during fire exposure. The ASTM E2307 test exposes the joint to fire from the room of fire origin and the exterior wall to fire from both the interior and the exterior as the fire plume exits the room of fire origin through a window opening. ASTM E 2307 determines the period of time that the perimeter fire containment system will limit flame penetration through the opening between the exterior wall assembly and the floor assembly.
Additional Attributes and Compliance
Additional Attributes and Compliance
This wall assembly enclosure also meets the following codes and standards. Click a standard to learn more:
Drawings
Construction Details including BIM objects and CAD drawing files for CMU Enclosure Solutions Wall Systems are available for download below.
BIM Objects
Owens Corning Enclosure Solutions CMU Wall
with EIFS & FOAMULAR CW25 XPS CI
