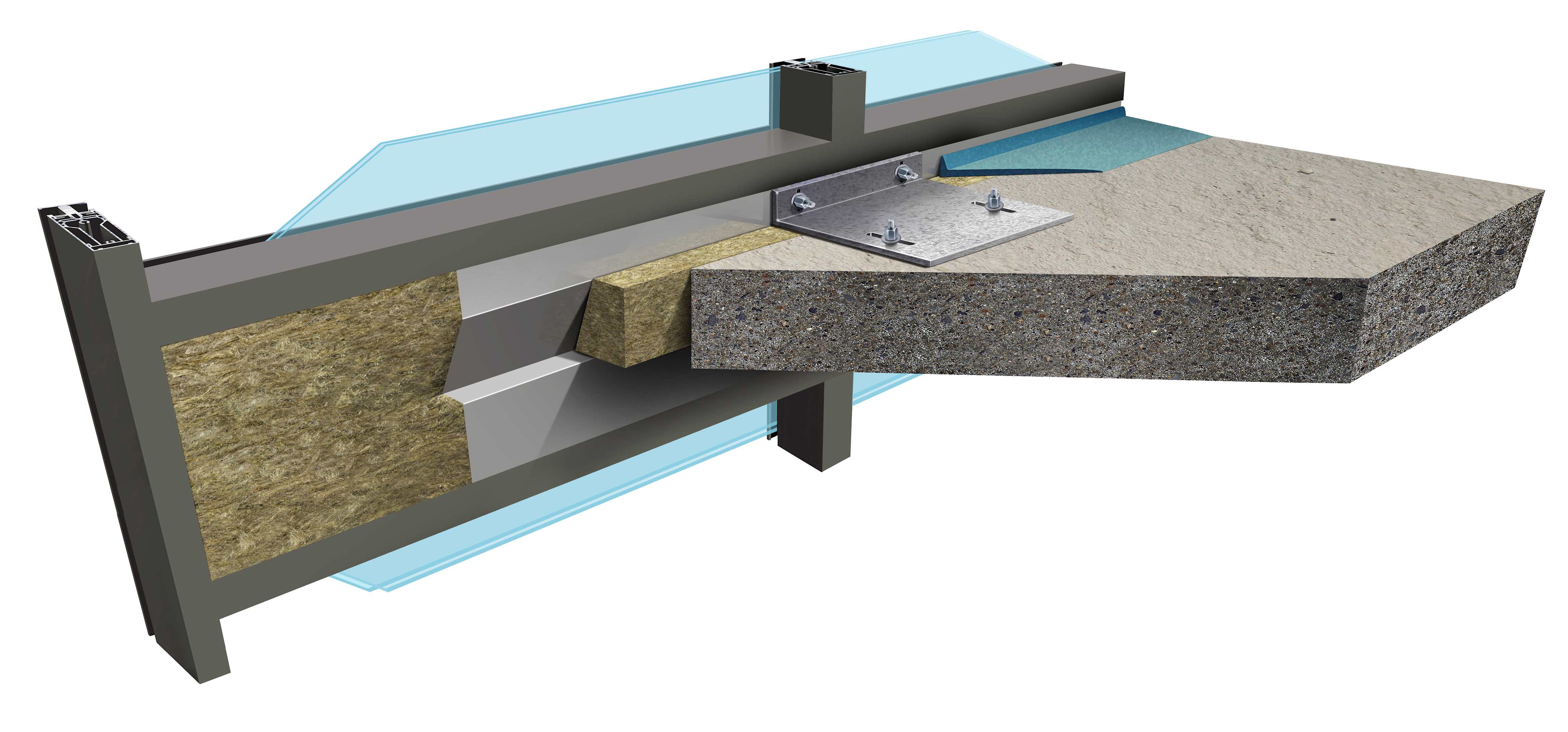

Thermafiber® Crimped Backpan System simplifies installation and inspection by using a crimped backpan, eliminating extra reinforcement. It allows up to 3-inch displacement and provides up to 2-hours of fire protection -- tested and listed by Intertek®.
Specifications and Literature
Data Sheets (4)
Brochures (3)
Safety Documents
Guide Specifications (1)
Case Studies (19)
Environmental Product Declarations (4)
Certifications (1)
LEED (2)
Warranty (1)
Technical Documentation (1)
Products In This Solution
Additional Products
Additional Products
Sold Separately
- Concrete Floor Slab
- Vision Glass
- Curtain Wall Anchors
- Vertical Mullion
- Min. 20 Ga. Galvanized Stell Crimped Backpan
- Horizontal Transom
Partner Products
- HILTI CFS-SP WB water-based acrylic sealant spray
- Specified Technologies Inc. Specseal Smoke n'sound acoustical sealant
Performance Attributes
Easy Installation
Fire Protection
Acoustic Performance
Thermal Performance
ASTM E2307
ASTM E2307
ASTM E2307 measures the ability of perimeter fire barrier systems to maintain a seal and prevent interior fire spread as the exterior wall assembly deflects and deforms during fire exposure. The ASTM E2307 test exposes the joint to fire from the room of fire origin and the exterior wall to fire from both the interior and the exterior as the fire plume exits the room of fire origin through a window opening. ASTM E 2307 determines the period of time that the perimeter fire containment system will limit flame penetration through the opening between the exterior wall assembly and the floor assembly.
INTERTEK® Approved Design Per ASTM E2307
INTERTEK® Approved Design Per ASTM E2307
Intertek is a leading provider of testing, inspection, and certification services worldwide. They offer a wide range of services, including testing for fire safety compliance. Intertek helps ensure that products and systems comply with relevant industry standards and regulations, including ASTM E2307. This test is critical in determining the fire safety of exterior wall assemblies and preventing the spread of flames. Design documents: 2-Hour F Rating Listing: TFI/BPF 120-15 | 3-Hour F Rating Listing: TFI/BPF 180-07
