Thermafiber® VersaBoard® multi-purpose insulation provides an outstanding combination of fire-resistive characteristics, acoustical and thermal performance, moisture resistance, and energy conservation for various commercial construction applications. These products are great for surfaces that require insulation for thermal and acoustical performance, including but not limited to parking garage under decking and mechanical rooms. VersaBoard® insulation is not listed by UL® or Intertek® for use in fire-rated systems.
Mineral Wool Insulation
Thermafiber® Versaboard®
Features
- Excellent thermal performance (R-Value up to 4.3 per inch)
- Exceptional sound and noise absorption
- Mineral wool is classified as non-combustible per CAN/ULC-S114
- Easy to fabricate
- Can reduce greenhouse gas emissions through conserving energy
- Minimum 70% recycled content
- Contributes to credits in several green building programs, such as LEED® and Green Globes®
Standards, Codes Compliance
- CAN/ULC-S702.1, Standard for Mineral Wool Fibre Thermal Insulations, Type 1 (Unfaced), Type 3 (Foil Faced)
- ASTM C612, Mineral Fiber Block and Board Thermal Insulation, unfaced and for both FSP facings available, excluding black mat:
VersaBoard® 35: Types 1A
VersaBoard® 40: Types IA, IB, II, III, IVA
VersaBoard® 60: Types IA, IB, II, III, IVA, IVB
VersaBoard® 80: Types IA, IB, II, III, IVA, IVB - NFPA 101, Class A rated only for unfaced and FSP VersaBoard® when used on an exposed interior surface
- VersaBoard® 60 can be used as a thermal barrier for foamed plastics, certified to CAN/ULC-S124. See QAI Listing No. B1079 for details
Installation
Thermafiber® VersaBoard® is designed for mechanical attachment. The types of fastener, method, and frequency are to be determined by the installer for the specificity of the project. The treatment of seams, including selection of tape, are to be determined by the project design team.
Certifications and Sustainable Features
- Verified by ICC-ES to contain a minimum of 70% recycled content. See ICC-ES Evaluation Report VAR-1025 at icc-es.org.
- Environmental Product Declaration (EPD) has been certified by UL Environment. For more information, visit ul.com/epd.
- VersaBoard® products have a published Health Product Declaration (HPD).*
Specifications & Literature
Data Sheets (1)
Performance Criteria Summary Sheets (1)
Warranty (2)
Environmental Product Declarations (1)
LEED (2)
Technical Information
Performance Criteria
PROPERTY | VALUE | TEST METHOD |
|---|---|---|
COMPLIANCE | CCMC Evaluation Listing No. 14060-L | CCMC |
Additional Performance Information
PROPERTY | VALUE | TEST METHOD |
|---|---|---|
STABILITY | Linear Shrinkage <2% @ 650°C (1200°F) | ASTM C356 |
FIRE |
| CAN/ULC-S114 |
ASTM E136 | ||
Smoulder Resistance Mean Mass Loss ≤ 0.02% | CAN/ULC-S129 | |
| CAN/ULC-S102 | |
ASTM E84 | ||
MOISTURE | Moisture Absorption <1% by volume | ASTM C1104 |
Water Vapour Permeance; |
| |
Fungi Resistance - Pass | ASTM C1338 | |
CORROSION | Austenitic Steel - PASS | ASTM C795 |
Steel, Aluminum, Copper - Non-coorosive | ASTM C665 |
Technical Data
PRODUCT | RSI /25.4 MM @ 24 ºC M2•K/W | R-VALUE/INCH @ 75 ºF HR•FT2•ºF/BTU | TEST METHOD |
|---|---|---|---|
VersaBoard® 35 | 0.71 | 4.0 | ASTM C518 |
VersaBoard® 40, 60 | 0.74 | 4.2 | |
VersaBoard® 80 | 0.72 | 4.1 |
Acoustical Performance
TESTED TO ASTM C423 SOUND ABSORPTION COEFFICIENTS AT OCTAVE BAND CENTER FREQUENCIES (Hz)
DENSITY | THICKNESS | 125* | 250 | 500 | 1000 | 2000 | 4000* | NRC |
|---|---|---|---|---|---|---|---|---|
64 kg/m3 | 51 mm (2") | 0.33 | 0.71 | 1.13 | 1.15 | 1.08 | 1.09 | 1.00 |
102 mm (4") | 1.01 | 1.26 | 1.23 | 1.13 | 1.11 | 1.09 | 1.20 | |
152 mm (6") | 1.35 | 1.17 | 1.20 | 1.13 | 1.06 | 1.10 | 1.05 | |
203 mm (8") | 1.34 | 1.21 | 1.21 | 1.14 | 1.12 | 1.09 | 1.05 | |
96 kg/m3 | 51 mm (2") | 0.36 | 0.79 | 1.15 | 1.04 | 1.01 | 1.04 | 1.00 |
102 mm (4") | 1.15 | 1.17 | 1.18 | 1.03 | 1.06 | 1.08 | 1.10 | |
152 mm (6") | 1.18 | 1.01 | 1.11 | 1.03 | 1.06 | 1.10 | 1.05 | |
| 203 mm (8") | 1.13 | 1.11 | 1.13 | 1.01 | 1.06 | 1.07 | 1.10 | |
128 kg/m3 | 51 mm (2") | 0.35 | 0.84 | 1.08 | 1.04 | 0.96 | 0.93 | 1.00 |
| 102 mm (4") | 0.49 | 1.11 | 1.11 | 1.14 | 0.97 | 0.64 | 1.10 | |
| 152 mm (6") | 0.61 | 1.19 | 1.19 | 1.10 | 1.03 | 0.86 | 1.15 | |
| 203 mm (8") | 0.75 | 1.35 | 1.26 | 1.19 | 1.15 | 1.17 | 1.25 |
Availability
For product density and sizing recommendations based on the application, please contact your local Owens Corning Area Sales Manager.
| Head One | AVAILABLE THICKNESS IN 1/2" INCREMENTS | STANDARD DIMENSIONS2,3 |
|---|---|---|
| VersaBoard® 35 | 38 mm - 178 mm (1½" - 7") | 406 mm x 1219 mm, 610 mm x 1219 mm (16" x 48", 24" x 48") |
| VersaBoard® 40 | 25 mm - 203 mm (1" - 8") | 610 mm x 1219 mm (24" x 48") |
| VersaBoard® 60 | 25 mm - 203 mm (1" - 8") | 610 mm x 1219 mm (24" x 48") |
| VersaBoard® 80 | 38 mm - 127 mm (1½" - 5") | 610 mm x 1219 mm (24" x 48") |
| Tolerances | +6 mm (¼"), -3 mm (⅛") | Width: ± 3 mm (⅛"), Length: ±13 mm (½") |
2 See our product guide for more details.
3 Custom sizes are available upon request.
3 Custom sizes are available upon request.
Product Options
For facing recommendations based on product density and sizing recommendations and based on the application, please contact your local Owens Corning Area Sales Manager.

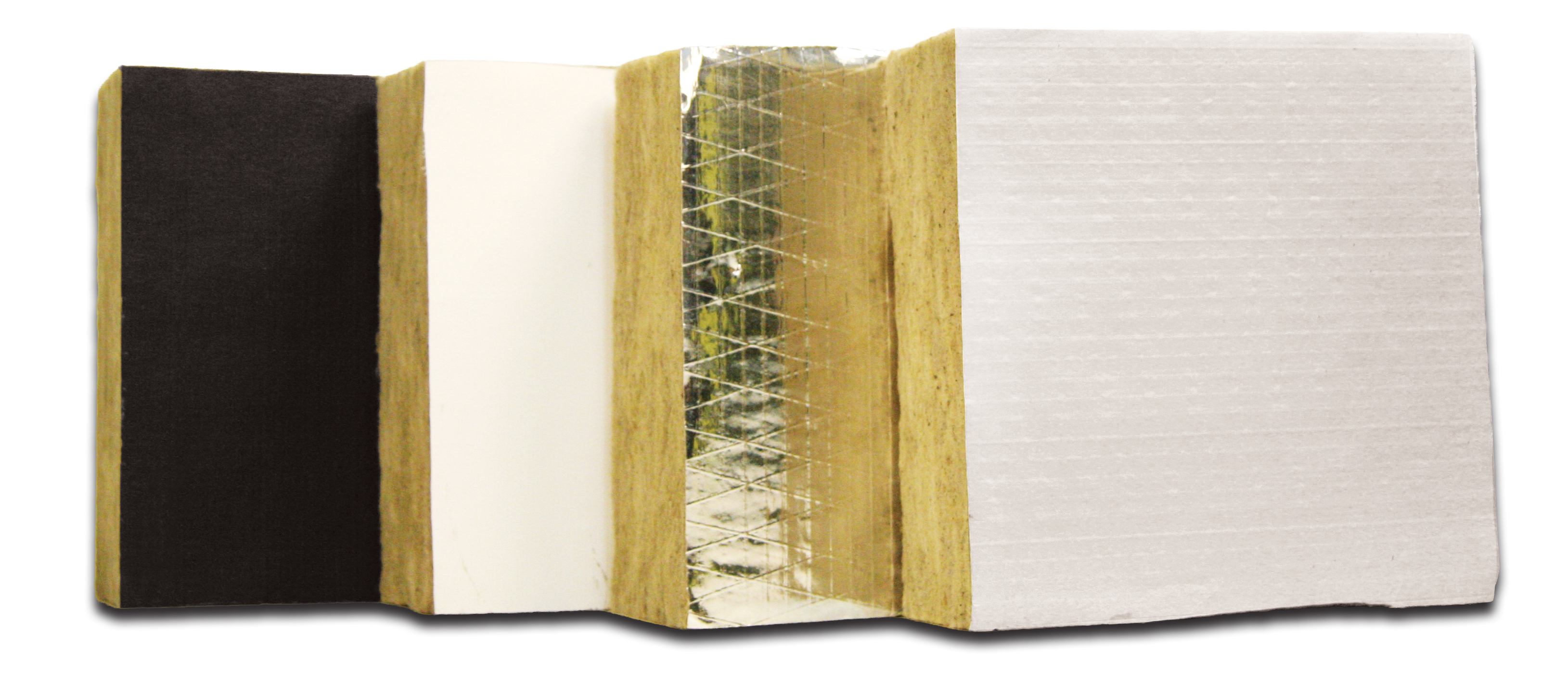

Thermafiber® VersaBoard® insulation is available faced with aluminum FSP, white aluminum FSP, and black mat. Faced material will have an edge reveal of up to 25 mm (1") maximum.4
| PRODUCT | ACTUAL DENSITY | ALUMINUM FSP | ALL OTHER FACINGS |
|---|---|---|---|
| VersaBoard® 35 | 56 kg/m3 (3.5 lbs/ft3) | ≥ 64 mm (2½″) | ≥ 89 mm (3½″) |
| VersaBoard® 40 | 64 kg/m3 (4.0 lbs/ft3) | ≥ 51 mm (2″) | ≥ 76 mm (3″) |
| VersaBoard® 60 | 96 kg/m3 (6.0 lbs/ft3) | ≥ 38 mm (1½″) | ≥ 51 mm (2″) |
| VersaBoard® 80 | 128 kg/m3 (8.0 lbs/ft3) | ≥ 25 mm (1″) | ≥ 38 mm (1½″) |
4 Edges may be taped.
Technical Services Available
For Canadian Technical inquiries, please contact our technical team at owenscorning.ca/contacttech.
Environmental and Sustainability
Owens Corning is a worldwide leader in building material systems, insulation, and composite solutions, delivering a broad range of high-quality products
and services.
Owens Corning is committed to driving sustainability by delivering solutions, transforming markets, and enhancing lives. More information can be found at owenscorning.ca or owenscorninglibrary.ca.
Disclaimer of Liability
Thermafiber, Inc. shall not be liable for incidental and consequential damages, directly or indirectly sustained, nor for any loss caused by application of these goods not in accordance with current printed instructions or for other than the intended use. Thermafiber, Inc. liability is expressly limited to replacement of defective goods. Any claim shall be deemed waived unless made in writing within thirty (30) days from date it was or reasonably should have been discovered.
Thermafiber, Inc. shall not be liable for incidental and consequential damages, directly or indirectly sustained, nor for any loss caused by application of these goods not in accordance with current printed instructions or for other than the intended use. Thermafiber, Inc. liability is expressly limited to replacement of defective goods. Any claim shall be deemed waived unless made in writing within thirty (30) days from date it was or reasonably should have been discovered.
LEED® is a registered trademark of the U.S. Green Building Council.
Green Globes® is a registered trademark of Green Building Initiative, Inc.
UL® and the UL® logo are trademarks of UL LLC.
Notes
For additional information, refer to the Safe Use Instruction Sheet (SUIS) found in the sds Database via sds.owenscorning.com.
For additional information, refer to the Safe Use Instruction Sheet (SUIS) found in the sds Database via sds.owenscorning.com.
Applications
