ENHANCE SURFACE AESTHETICS & PERFORMANCE

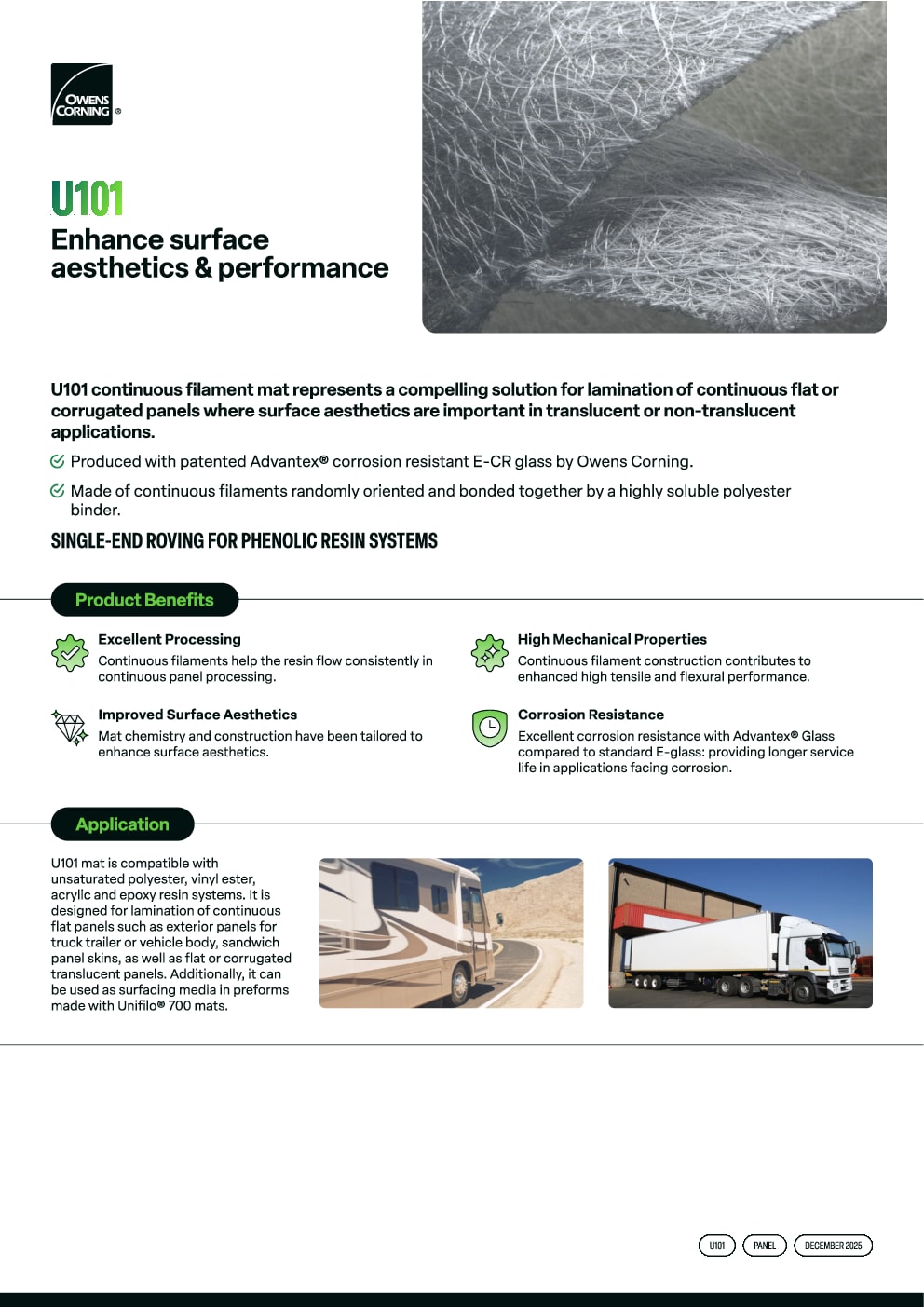

U101 continuous filament mat represents a compelling solution for lamination of continuous flat or corrugated panels where surface aesthetics are important in translucent or non-translucent applications.

TALK TO AN EXPERT

Specifications and Literature

Performance Attributes

Excellent processing Icon

Excellent processing

Improved surface aesthetics Icon

Improved surface aesthetics

High mechanical properties Icon

High mechanical properties

Corrosion resistance Icon

Corrosion resistance

  • Excellent processing

    Continuous filaments help the resin flow consistently in continuous panel processing.

  • Improved surface aesthetics

    Mat chemistry and construction have been tailored to enhance surface aesthetics.

  • High mechanical properties

    Continuous filament construction contributes to enhanced high tensile and flexural performance.

  • Corrosion resistance

    Excellent corrosion resistance with Advantex® Glass compared to standard E-glass: providing longer service life in applications facing corrosion.

Truck trailer - Vehicle body - Translucent panels.

U101 mat is compatible with unsaturated polyester, vinyl ester, acrylic and epoxy resin systems. It is designed for lamination of continuous flat panels such as exterior panels for truck trailer or vehicle body, sandwich panel skins, as well as flat or corrugated translucent panels. Additionally, it can be used as surfacing media in preforms made with Unifilo® 700 mats. (Image copyright iStockphoto.com. For application illustration only.)

Technical Information

Availability

U101 is available in Europe. Standard widths are available from 50 to 300cm. Additional widths are available upon request by your Owens Corning contact.


Nominal Mat Weight (g/cm2) Roll Width (cm)
150 - 250 - 300 - 450 - 600 100

Packaging (Standard Reference)

Each roll is wound on a 103mm internal diameter cardboard tube and wrapped with a transparent stretch film.


Nominal Mat Width(cm) Roll Ø (cm) Rolls per Pallet Pallet Size (cm)
<=210 52 9 114x114
>210 52 9 Wooden Crate

Labeling

Each roll bears a label detailing the product description, product code, nominal weight, roll width, roll number and manufacture date.


Storage

Unless otherwise specified, it is recommended to store glass fiber products in a cool, dry area. Ideal conditions are at a temperature between 10°C and 35°C and a relative humidity between 35% and 85%. The glass fiber products must remain in their original packaging material until the point of usage. If the storage temperature is below 15°C, it is recommended that the product be stored in the workshop, within its original packaging, at least 24 hours prior to use to help prevent condensation. The packaging is not waterproof. Be sure to protect the product from the weather and other sources of water. When stored properly, the product can be used up to 2 years from the date of manufacture, and retesting is advised after 1 year from the initial production date to insure optimum performance.

    Regional Availability

    U101 is available in Europe.

    Applications

    • Buildings and Construction > Exterior > Architectural facades
    • Consumer Goods > Other Open or Closed Mold
    • Industrial and Corrosion
    • OEM (Original Equipment Manufacturer)
    • Transportation > Automotive > Exterior > (Body) Panels
    • Transportation > Heavy Transportation
    • Transportation > marine
    • Transportation > Rail and Train
