Thermafiber® RainBarrier® ci High Compressive | Owens Corning Insulation

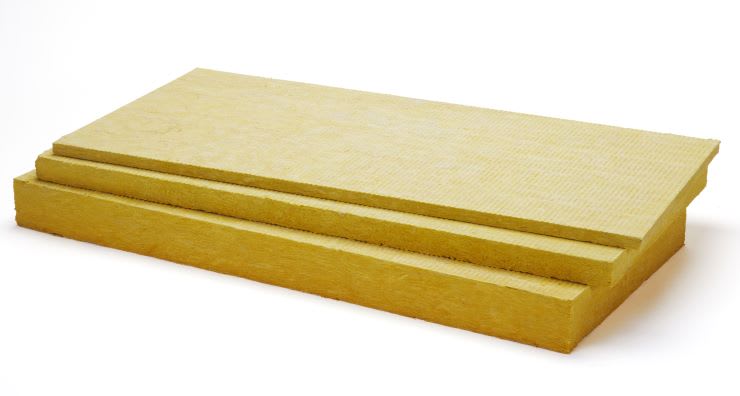

Thermafiber® RainBarrier® ci High Compressive continuous insulation boards are designed to support cladding attachment with minimal penetrations. The use of ThermaCrimp™ technology allows for excellent compressive strength while providing thermal efficiency, non-combustibility, water repellency, and flexibility when working with uneven substrates.

RainBarrier® ci High Compressive (80) can be used behind light weight
cladding — including combustible and open-joint assemblies.

RainBarrier® ci High Compressive Plus (110) can be used behind medium-weight cladding types — including combustible and open-joint assemblies.

RainBarrier® ci High Compressive Max (140) can be used behind heavy-weight cladding types — including combustible and open-joint assemblies.

RainBarrier® Insulation Guide

Thermafiber® RainBarrier® ci High Compressive (80)

Features

  • High compressive strength to support cladding attachment system with minimal penetration through continuous insulation
  • More than 10% lighter in weight than the leading competitor’s product
  • Vapour permeable
  • Tolerant of substrate irregularities
  • Non-combustible and non-deteriorating
  • Fire-resistant to temperatures above 1,093°C (2,000°F)
  • Enhances acoustical performance
  • Minimum 70% recycled content1
  • Contributes to credits in several green building programs such as LEED® and Green Globes®

Thermafiber® RainBarrier® ci High Compressive Plus (110)

Features

  • High compressive strength to support cladding attachment system with minimal penetration through continuous insulation
  • More than 25% lighter in weight than the leading competitor’s product
  • Vapour permeable
  • Non-combustible and non-deteriorating
  • Helps conserve energy/reduce greenhouse gas emissions
  • Fire-resistant to temperatures above 1,093°C (2,000°F)
  • Enhances acoustical performance
  • Minimum 70% recycled content1
  • Contributes to credits in several green building programs, such as LEED® and Green Globes®

Thermafiber® RainBarrier® ci High Compressive Max (140)

Features

  • High compressive strength to support cladding attachment system with minimal penetration through continuous insulation
  • Vapour permeable
  • Non-combustible and non-deteriorating
  • Helps conserve energy/reduce greenhouse gas emissions
  • Fire-resistant to temperatures above 1,093°C (2,000°F)
  • Enhances acoustical performance
  • Minimum 70% recycled content1
  • Contributes to credits in several green building programs, such as LEED® and Green Globes®

Standards, Codes Compliance (80)

  • CCMC Evaluation Listing No. 14060-L
  • CAN/ULC-S702.1, Standard for Mineral Fibre Thermal Insulation for Buildings, Type 1
  • ASTM C612, Mineral Fiber Block and Board Thermal Insulation, Types IA, IB, II, III, IVA, IVB
  • RainBarrier® CI High Compressive 80 can be used as a thermal barrier for foamed plastics, certified to CAN/ULC-S124. See QAI Listing No. B1079 for details

Standards, Codes Compliance (110)

  • CCMC Evaluation Listing No. 14060-L
  • CAN/ULC-S702.1, Standard for Mineral Fibre Thermal Insulation for Buildings, Type 1
  • ASTM C612, Mineral Fiber Block and Board Thermal Insulation, Types IA, IB, II, III, IVA, IVB

Standards, Codes Compliance (140)

  • CCMC Evaluation Listing No. 14060-L
  • CAN/ULC-S702.1, Standard for Mineral Fibre Thermal Insulation for Buildings, Type 1
  • ASTM C612, Mineral Fiber Block and Board Thermal Insulation, Types IA, IB, II, III, IVA, IVB

Certifications and Sustainable Features

  • Verified by ICC-ES to contain a minimum of 70% recycled content. See ICC-ES Evaluation Report VAR-1025 at icc-es.org.
  • Environmental Product Declaration (EPD) has been certified by UL Environment. For more information, visit ul.com/epd.
  • Rainbarrier® products have a published Health Product Declaration (HPD).
  • Living Building Challenge Compliant and Red List Approved.


Installation

Thermafiber, Inc. recommends mechanical attachment of Thermafiber® RainBarrier® CI HC insulation products. See Owens Corning publication “Thermafiber® RainBarrier® CI High Compressive – Cladding Attachment Guide Canada” (Pub. No. 600224) for more information. The types of fastener, method, and frequency are to be determined by the installer for the specificity of the project and approved by the project design team.

Technical Information

Performance Criteria

PROPERTY

VALUE

TEST METHOD

COMPLIANCE

CCMC Evaluation Listing No. 14060-L
Type 1

CCMC
CAN/ULC-S702.1

RainBarrier® ci High Compressive (80)

Additional Performance Information

PROPERTY

VALUE

TEST METHOD

COMPRESSIVE STRENGTH

22.7 kPa (475 lbs/ft2) @ 10% deformation

ASTM C165

FIRE

Flame Spread 0, Smoke Developed 5

CAN/ULC-S102

Flame Spread 0, Smoke Developed 0

ASTM E84

Complies

CAN/ULC-S114

Non-Combustible as defined per NFPA 220

ASTM E136

SMOULDER RESISTANCE Mean Mass Loss ≤ 0.02%

CAN/ULC-S129

STABILITY

LINEAR SHRINKAGE <2% @ 650 ºC (1,200 ºF)

ASTM C356

MOISTURE

WATER VAPOUR PERMEANCE 1,373 ng/Pa•s•m2 (24 Perms)

ASTM E96

WATER VAPOUR SORPTION less than 0.5% by volume

ASTM C1104

FUNGI RESISTANCE (PASS)

ASTM C1338

CORROSION

CORROSION OF STEEL, ALUMIUM AND COPPER (PASS)

ASTM C665

STRESS CORROSION - AUSTENITIC STEEL (PASS)

ASTM C795

ODOR

PASS

ASTM C1304

Technical Data

NOMINAL DENSITY

RSI /25.4 MM @ 24 ºC M2•K/W

R-VALUE/INCH @ 75 ºF HR•FT2•ºF/BTU

TEST METHOD

128 kg/m3 (8.0 pcf)

0.74

4.2

ASTM C518

Acoustical Performance

THCKNESS

125 HZ

250 HZ

500 HZ

1000 HZ

2000 HZ

4000 HZ

NRC

TEST METHOD

51 mm (2")

0.22

0.90

1.05

1.06

1.02

1.04

1.00

ASTM C423

RainBarrier® ci High Compressive Plus (110)

Additional Performance Information

PROPERTYVALUE

TEST METHOD

COMPRESSIVE STRENGTH34.5 kPa (720 lbs/ft²) @ 10% deformation

ASTM C165

FIRE

Flame Spread 0, Smoke Developed 5

CAN/ULC-S102

Flame Spread 0, Smoke Developed 0

ASTM E84

Non-Combustible

CAN/ULC-S114

Non-Combustible as defined per NFPA 220

ASTM E136

SMOULDER RESISTANCE Mean Mass Loss ≤ 0.02%

CAN/ULC-S129

STABILITY

LINEAR SHRINKAGE <2% @ 650 ºC (1200 ºF)

ASTM C356

MOISTURE

WATER VAPOUR PERMEANCE 2,631 ng/Pa•s•m² (46 Perms)

ASTM E96

WATER VAPOUR SORPTION <0.5% by volume

ASTM C1104

FUNGI RESISTANCE (PASS)

ASTM C1338

CORROSION

CORROSION OF STEEL, ALUMIUM AND COPPER (PASS)

ASTM C665

STRESS CORROSION - AUSTENITIC STEEL (PASS)

ASTM C795

ODORPass

ASTM C1304

Technical Data

NOMINAL DENSITY

RSI /25.4 MM @ 24 ºC M2•K/W

R-VALUE/INCH @ 75 ºF HR•FT2•ºF/BTU

TEST METHOD

176 kg/m3 (11.0 pcf)

0.73

4.1

ASTM C518

Acoustical Performance

THCKNESS

125 HZ

250 HZ

500 HZ

1000 HZ

2000 HZ

4000 HZ

NRC

TEST METHOD

32 mm (1.25")

0.11

0.52

0.99

1.01

1.01

1.00

0.90


ASTM C423

51 mm (2")

0.27

0.89

0.95

1.04

1.00

1.00

0.95

102 mm (4")

0.57

0.79

0.95

0.99

0.99

0.99

0.95

RainBarrier® ci High Compressive Max (140)

Additional Performance Information

PROPERTYVALUE

TEST METHOD

COMPRESSIVE STRENGTH

62.1 kPa (1296 lbs/ft2) @ 10% deformation

ASTM C165

FIRE

Flame Spread 0, Smoke Developed 5

CAN/ULC-S102

Flame Spread 0, Smoke Developed 0

ASTM E84

Complies

CAN/ULC-S114

Non-Combustible as defined per NFPA 220

ASTM E136

SMOULDER RESISTANCE Mean Mass Loss ≤ 0.02%

CAN/ULC-S129

STABILITY

LINEAR SHRINKAGE <2% @ 650 ºC (1200 ºF)

ASTM C356

MOISTURE

WATER VAPOUR PERMEANCE 3261 ng/Pa•s•m2 (57 Perms)

ASTM E96

WATER VAPOUR SORPTION <0.5% by volume

ASTM C1104

FUNGI RESISTANCE (PASS)

ASTM C1338

CORROSION

CORROSION OF STEEL, ALUMIUM AND COPPER (PASS)

ASTM C665

STRESS CORROSION - AUSTENITIC STEEL (PASS)

ASTM C795

CHEMICAL ANALYSIS FOR Cl, Fl, Na+, SiO44

Results fall within acceptability limits of ASTM C795

ASTM C871 / ASTM C795

ODORPass

ASTM C1304

Technical Data

NOMINAL DENSITY

RSI /25.4 MM @ 24 ºC M2•K/W

R-VALUE/INCH @ 75 ºF HR•FT2•ºF/BTU

TEST METHOD

224 kg/m3 (14.0 pcf)

0.71

4.0

ASTM C518

Acoustical Performance

THCKNESS

125 HZ

250 HZ

500 HZ

1000 HZ

2000 HZ

4000 HZ

NRC

TEST METHOD

25 mm (1")

0.10

0.41

0.86

0.97

0.96

0.96

0.80


ASTM C423

51 mm (2")

0.33

0.79

0.77

0.93

0.93

.094

0.85

102 mm (4")

0.44

0.69

0.89

0.90

0.93

0.95

0.85

Availability

PRODUCT

THICKNESS2

STANDARD DIMENSIONS

RainBarrier® ci High Compressive (80)

38 mm - 152 mm (1.5" - 6")

610 mm x 1219 mm (24" x 48")
1219 mm x 1829 mm (48" x 72")

RainBarrier® ci High Compressive Plus (110)

32 mm, 38 mm - 102 mm (1.25", 1.5" - 4″)

610 mm x 1219 mm (24" x 48")
1219 mm x 1829 mm (48" x 72")

RainBarrier® ci High Compressive Max (140)

25 mm - 102 mm (1" - 4")

610 mm x 1219 mm (24" x 48")
1219 mm x 1829 mm (48" x 72")

2 Thicknesses are available in 13 mm (½″) increments

Technical Services Available

For Canadian Technical inquiries, please contact our technical team at owenscorning.ca/contacttech.


Environmental and Sustainability

Owens Corning is a worldwide leader in building material systems, insulation, and composite solutions, delivering a broad range of high-quality products and services.

Owens Corning is committed to driving sustainability by delivering solutions, transforming markets, and enhancing lives. More information can be found at owenscorning.ca or owenscorninglibrary.ca.


Disclaimer of Liability
Thermafiber, Inc. shall not be liable for incidental and consequential damages, directly or indirectly sustained, nor for any loss caused by application of these goods not in accordance with current printed instructions or for other than the intended use. Thermafiber, Inc. liability is expressly limited to replacement of defective goods. Any claim shall be deemed waived unless made in writing within thirty (30) days from date it was or reasonably should have been discovered.
UL and the UL logo are trademarks of UL LLC.

Notes
For additional information, refer to the Safe Use Instruction Sheet (SUIS) found in the sds Database via sds.owenscorning.com.
Certification Logos

Applications

  • Walls
