Masonry Veneer CMU Wall
Mineral Wool CI with Fluid or Sheet AWB
Overview
Overview

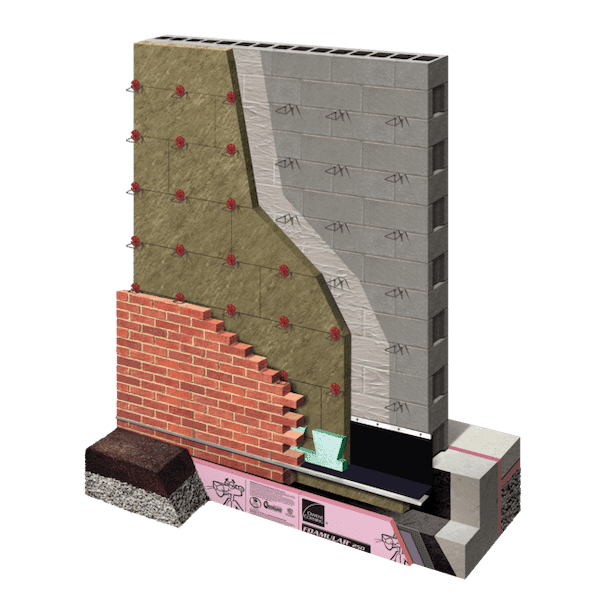

This Enclosure Solutions Wall System includes a CMU structure with masonry veneer and mineral wool continuous insulation with fluid or sheet applied air and water resistive barrier (AWB). Complies with NFPA 285(fire), ASTM E2357 (air) and ASTM E331 (water).
Get all the construction documentation you'll need, in a single click:
Specifications and Literature
Data Sheets (4)
Brochures (1)
Safety Documents
Guide Specifications (2)
Technical Documentation (4)
Environmental Product Declarations (1)
LEED (1)
Warranty (2)
Code Compliance (4)
Products In This Solution
Additional Products
Additional Products
Sold Separately
- CMU
- Air & Water Barrier (AWB)
- Through Wall Flashing
- Masonry Anchors
- Mortar Drop Protection
- Brick Veneer
- Weep Hole Inserts
Performance Attributes
Durability
Easy Installation
Fire Resistance
Thermal Comfort
ASHRAE 90.1
ASHRAE 90.1
ASHRAE Standard 90.1 requires Continuous Insulation (CI) be used for all commercial and some residential buildings in the United States. Continuous insulation is defined in 90.1 as “insulation that is continuous across all structural members without thermal bridges other than fasteners and service openings. It is installed on the interior, exterior, or is integral to any opaque surface of the building envelope”.
ASTM E2307
ASTM E2307
ASTM E2307 measures the ability of perimeter fire barrier systems to maintain a seal and prevent interior fire spread as the exterior wall assembly deflects and deforms during fire exposure. The ASTM E2307 test exposes the joint to fire from the room of fire origin and the exterior wall to fire from both the interior and the exterior as the fire plume exits the room of fire origin through a window opening. ASTM E 2307 determines the period of time that the perimeter fire containment system will limit flame penetration through the opening between the exterior wall assembly and the floor assembly.
NFPA 285 Compliant
NFPA 285 Compliant
NFPA 285 is required in the International Building Code (IBC) in multiple situations. The NFPA 285 test is to determine that combustibles, when exposed to fire on the exterior face of the wall, do not spread flame over the surface or through the core of the otherwise non-combustible wall assembly.
ADDITIONAL ATTRIBUTES AND COMPLIANCE
ADDITIONAL ATTRIBUTES AND COMPLIANCE
This wall assembly enclosure also meets the following codes and standards. Click a standard to learn more:
Drawings
Construction Details including CAD drawing files for CMU Enclosure Solutions Wall Systems are available for download below.
BIM Objects
Owens Corning Enclosure Solutions CMU Walls BIM
RVT 940KB
CAD Files
CAD Files

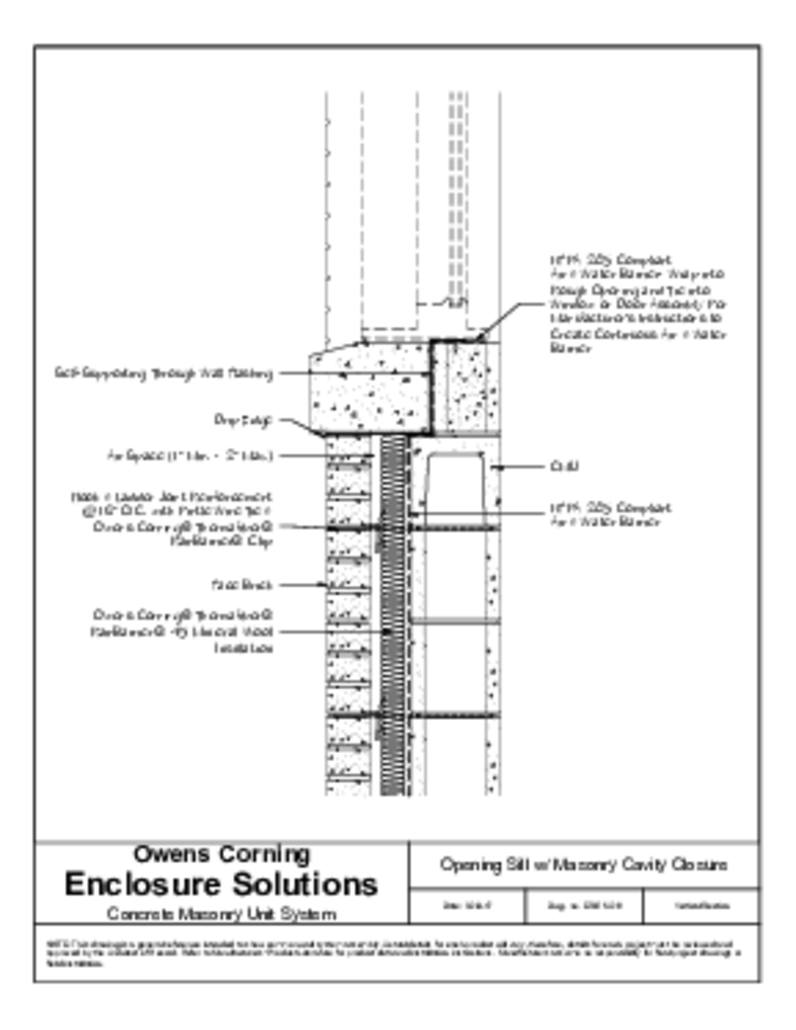

CMU SILLTHERMAFIBER® RAINBARRIER® 45 MINERAL WOOL CI
with Masonry Return and Wash Cavity Closure
PDF 136.31 KB
CMU JAMBTHERMAFIBER® RAINBARRIER® 45 MINERAL WOOL CI
with FRTW Blocking Cavity Closure
PDF 134.74 KB
CMU JAMBTHERMAFIBER® RAINBARRIER® 45 MINERAL WOOL CI
with Thermafiber Safing Cavity
CMU Jamb- Thermafiber Rainbarrier 45 Mineral Wool CI with Thermafiber Safing Cavity Closure
91.34 KB
PDF 136.18 KB

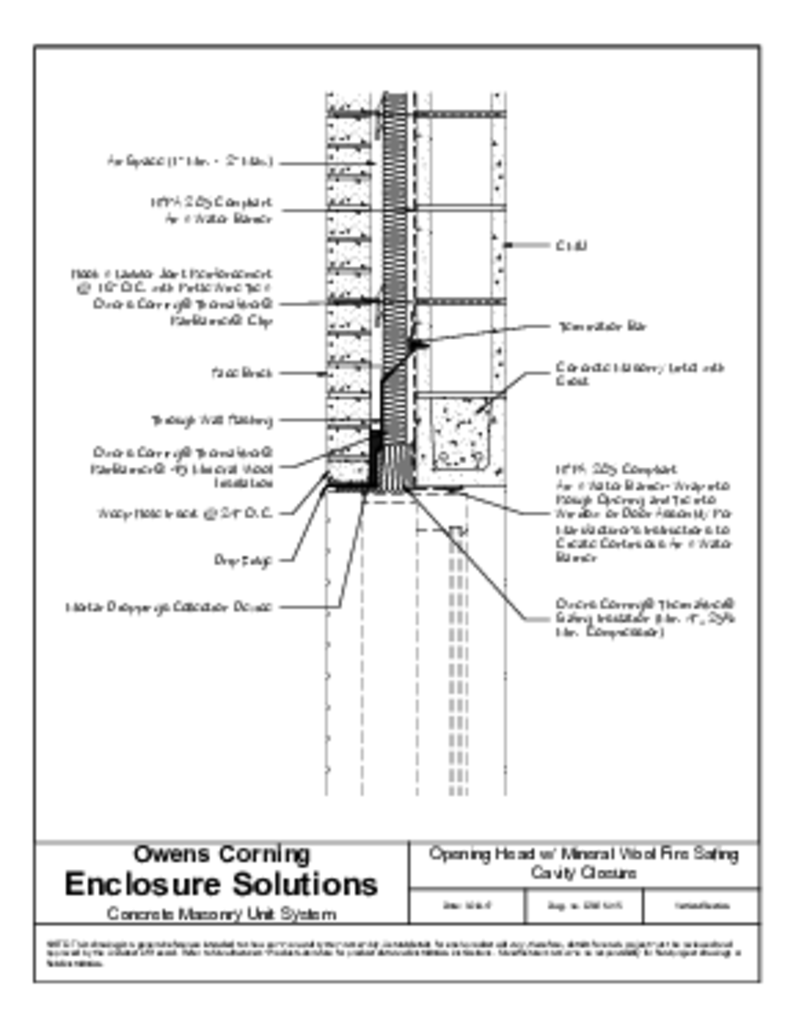

CMU HEADTHERMAFIBER® RAINBARRIER® 45 MINERAL WOOL CI
with Thermafiber and Loose Angle Cavity Closure
PDF 141.58 KB

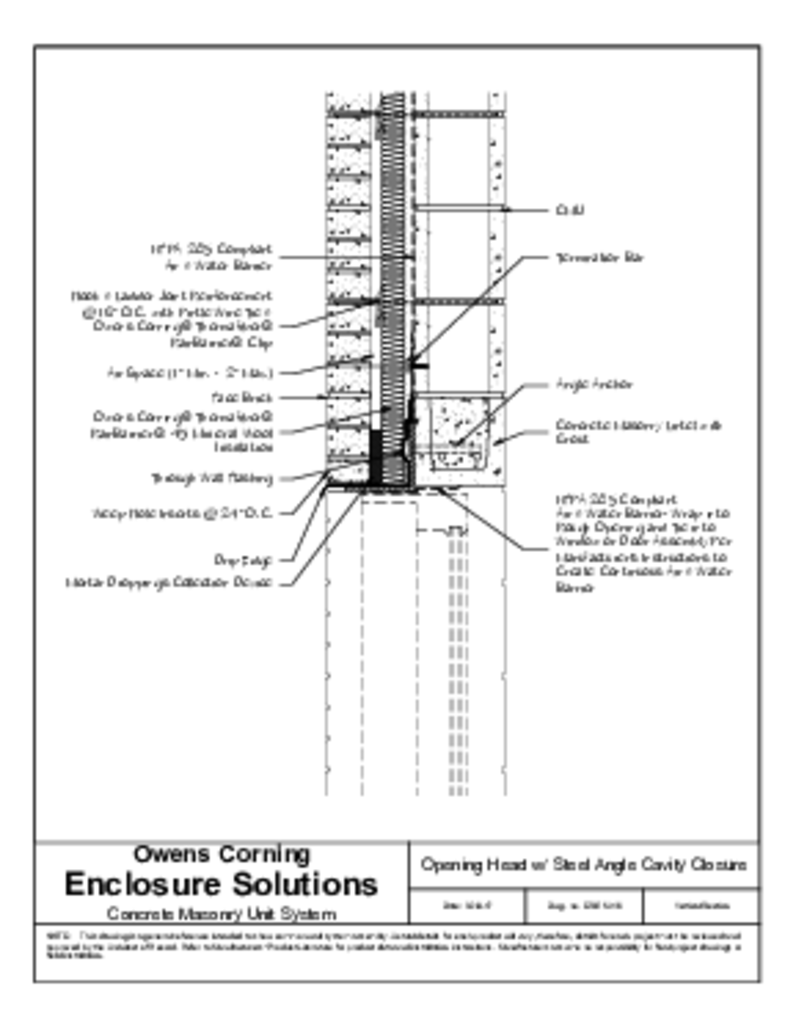

CMU HEADTHERMAFIBER® RAINBARRIER® 45 MINERAL WOOL CI
with Steel Angle Cavity Closure
PDF 140.42 KB
CMU SILL- THERMAFIBER RAINBARRIER 45 MINERAL WOOL CI WITH THERMAFIBER SAFING
Case Studies & Projects
Bothell, WAUNIVERSITY OF WASHINGTON BOTHELL, DISCOVERY HALL
Owens Corning® Thermafiber® RainBarrier® 45 Continuous Insulation was specified in the wall assembly to deliver thermal protection and moisture resistance properties that help control the infiltration of rain and moisture that can lead to rot and mold.
Ann Arbor, MIUNIVERSITY OF MICHIGAN NORTH QUAD BUILDING
Owens Corning® Thermafiber® RainBarrier® 45 mineral wool insulation was used in the masonry cavity wall construction to minimize the loss of hot and cold and maximize energy efficiency, thermal insulation, fire protection and acoustical control.
