Steel Stud Wall Masonry Veneer
XPS CI with Fluid or Sheet AWB
Overview
Overview

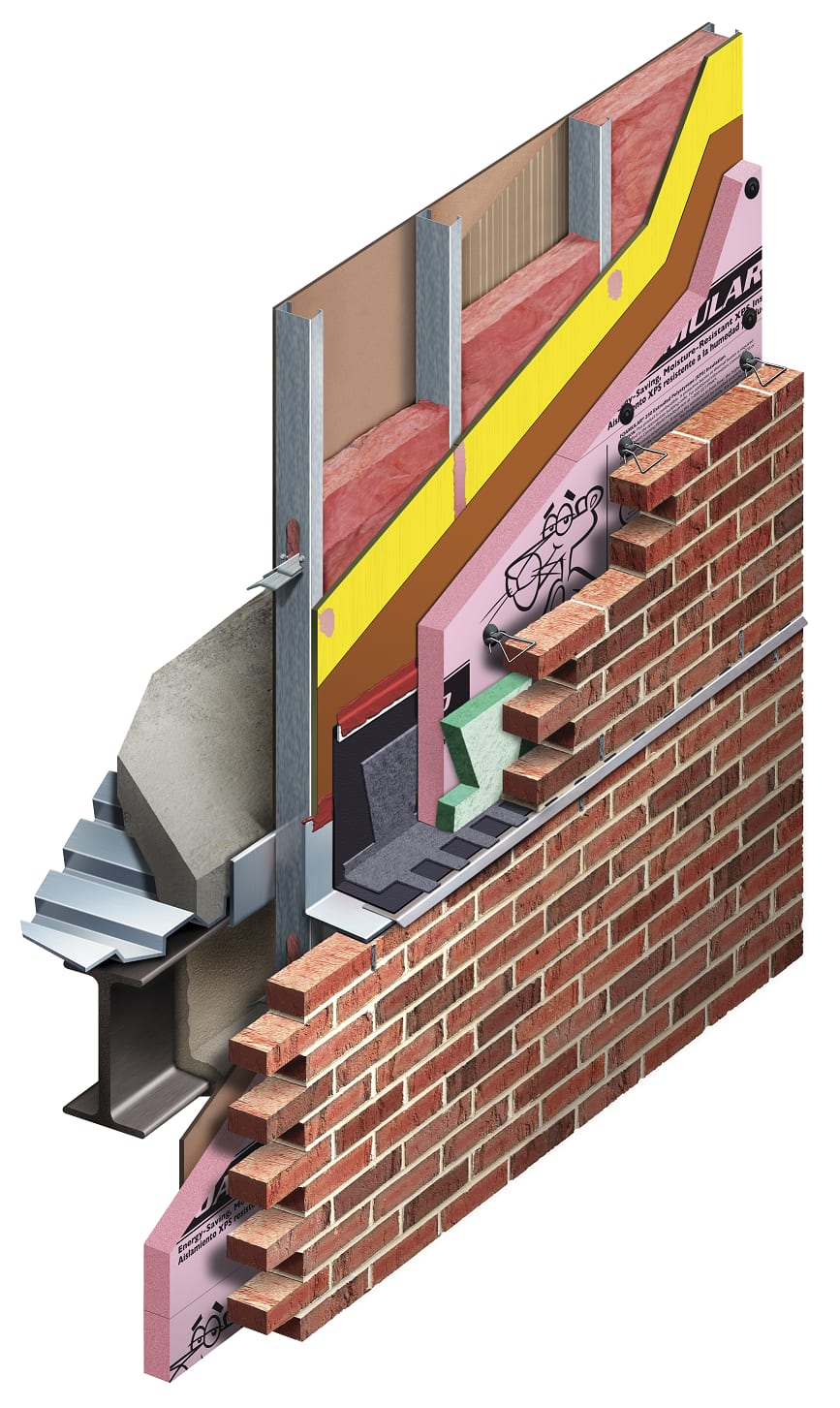

This Enclosure Solution Wall System includes a steel stud structure with masonry veneer, exterior gypsum sheathing, XPS CI, & fiberglass batt. By selecting correct components, it complies with NFPA 285(fire), ASTM E119(fire), ASTM E2357(air), & ASTM E331(water).
Get all the construction documentation you'll need, in a single click:
Specifications and Literature
Data Sheets (4)
Brochures (4)
Code Compliance (7)
Technical Documentation (9)
Guide Specifications (1)
Warranty (1)
LEED (5)
Installation Instructions (1)
Safety Documents
Case Studies (3)
Products In This Solution
FOAMULAR® 250 NGX® XPS Insulation
PINK Next Gen® Fiberglas™ Batt Insulation
Thermafiber® Safing Insulation
Additional Products
Additional Products
Sold Separately
- Interior Gypsum Board
- Galvanized Steel Studs
- Exterior Gypsum Sheathing
- Air & Water Barrier (AWB)
- Air & Water Sealing Fasteners
- Through Wall Flashing
- Mortar Drop Protection
- Masonry Anchors
- Weep Hole Inserts
- Brick Veneer
Performance Attributes
Durability
Easy Installation
Recycled Materials
Thermal Comfort
ASHRAE 90.1
ASHRAE 90.1
ASHRAE Standard 90.1 requires Continuous Insulation (CI) be used for all commercial and some residential buildings in the United States. Continuous insulation is defined in 90.1 as “insulation that is continuous across all structural members without thermal bridges other than fasteners and service openings. It is installed on the interior, exterior, or is integral to any opaque surface of the building envelope”.
ASTM E2307
ASTM E2307
ASTM E2307 measures the ability of perimeter fire barrier systems to maintain a seal and prevent interior fire spread as the exterior wall assembly deflects and deforms during fire exposure. The ASTM E2307 test exposes the joint to fire from the room of fire origin and the exterior wall to fire from both the interior and the exterior as the fire plume exits the room of fire origin through a window opening. ASTM E 2307 determines the period of time that the perimeter fire containment system will limit flame penetration through the opening between the exterior wall assembly and the floor assembly.
Additional Attributes and Compliance
Additional Attributes and Compliance
This wall assembly enclosure also meets the following codes and standards. Click a standard to learn more
Drawings
Construction Details including CAD drawing files for Steel Stud Enclosure Solutions Wall Systems are available for download below.
CAD Files
CAD Files
FOAMULAR® 250 XPS CI
FOAMULAR® 250 XPS CI
Wall to Foundation Transition
DWG 69.19 KB
FOAMULAR® 250 XPS CI
with Masonry Return & Wash Cavity Closure
DWG 69.2 KB
FOAMULAR® 250 XPS CI
with Thermafiber® Safing™
DWG 73.17 KB
FOAMULAR® 250 XPS CI
with Masonry Return Cavity Closure
DWG 66.83 KB
FOAMULAR® 250 XPS CI
with FRTW Cavity Closure
DWG 100.52 KB
FOAMULAR® 250 XPS CI
with Thermafiber® Safing™ Cavity Closure
DWG 67.57 KB
FOAMULAR® 250 XPS CI
with FRTW Blocking & Loose Angle Cavity Closure
DWG 77.02 KB
FOAMULAR® 250 XPS CI
with Steel Angle Cavity Closure
DWG 75.45 KB
FOAMULAR® 250 XPS CI
Wall Section
DWG 99.12 KB
FOAMULAR® 250 XPS CI
with Masonry Veneer Wall to Parapet
FOAMULAR® 250 XPS CI
with Masonry Veneer Wall to Gravel Stop
Foamular 250 XPS CI
with Masonry Veneer Wall Perimeter Fire Containment
