Owens Corning JointSealR Foam Joint Tape is an effective product to tape the joints of FOAMULAR® extruded polystyrene (XPS) board in vertical wall applications when it is used as continuous insulation over steel or wood wall framing.
Accessories
FOAM JOINT TAPE
JOINTSEALR®
FOAM JOINT TAPESpecifications & Literature

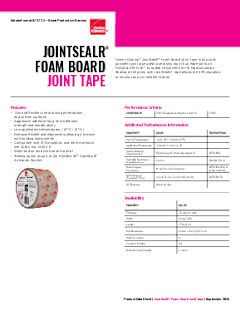

Data Sheets (1)
Installation Instructions (1)
Comprehensive Guides (1)
brochures (1)
LEED (2)
Safety Documents
Resources
Basement Wall
Exposed Floor
Flat Ceiling
1st Floor Wall
2nd Floor Wall
Owens Corning® ComfortSHIELD™ High Performance Building Enclosure System
Training Animation - Exterior Wall
Training Animation - ComfortShield™
Technical Information
Performance Criteria
| DIMENSION | PROPERTY | TEST METHOD |
|---|---|---|
| COMPLIANCE | Evaluation Listing No. 14003-L | CCMC |
| SERVICE TEMPERATURE | -40 to 74 °C (-40 to 165 °F ) | – |
| APPLICATION TEMPERATURE | -18 to 49 °C (0 to 120 °F) | – |
| Flame Spread 5; Smoke Developed 25 | ASTM E84 |
| Smoulder Resistance Mean Mass Loss ≤ 0.02% | CAN/ULC-S129 | |
| MOISTURE | Water Vapour Transmission: 0.19 perms | ASTM E96/E96 M (water method) |
AIR PERMEANCE | 0.00017 L/s*m2 (0.0000335 cfm/sq. ft.) | ASTM E2178 |
| UV EXPOSURE | Up to 180 Days |
Product & Packaging Data
| PROPERTY | VALUE |
|---|---|
| Thickness (mils) | .25 mm (9.9) |
| Width | 89 mm (3.5") |
| Length | 27.4 m (90') |
| Roll Dimensions | 89 mm x 27.4 m (3.5" x 90') |
| Rolls Per Carton | 8 |
| Cartons Per Pallet | 54 |
| Minimum Order Quantity | 1 carton |
Applications
- Accessories and Speciality
- Air Sealing
