Fiberglas™ Insul-Quick® insulation

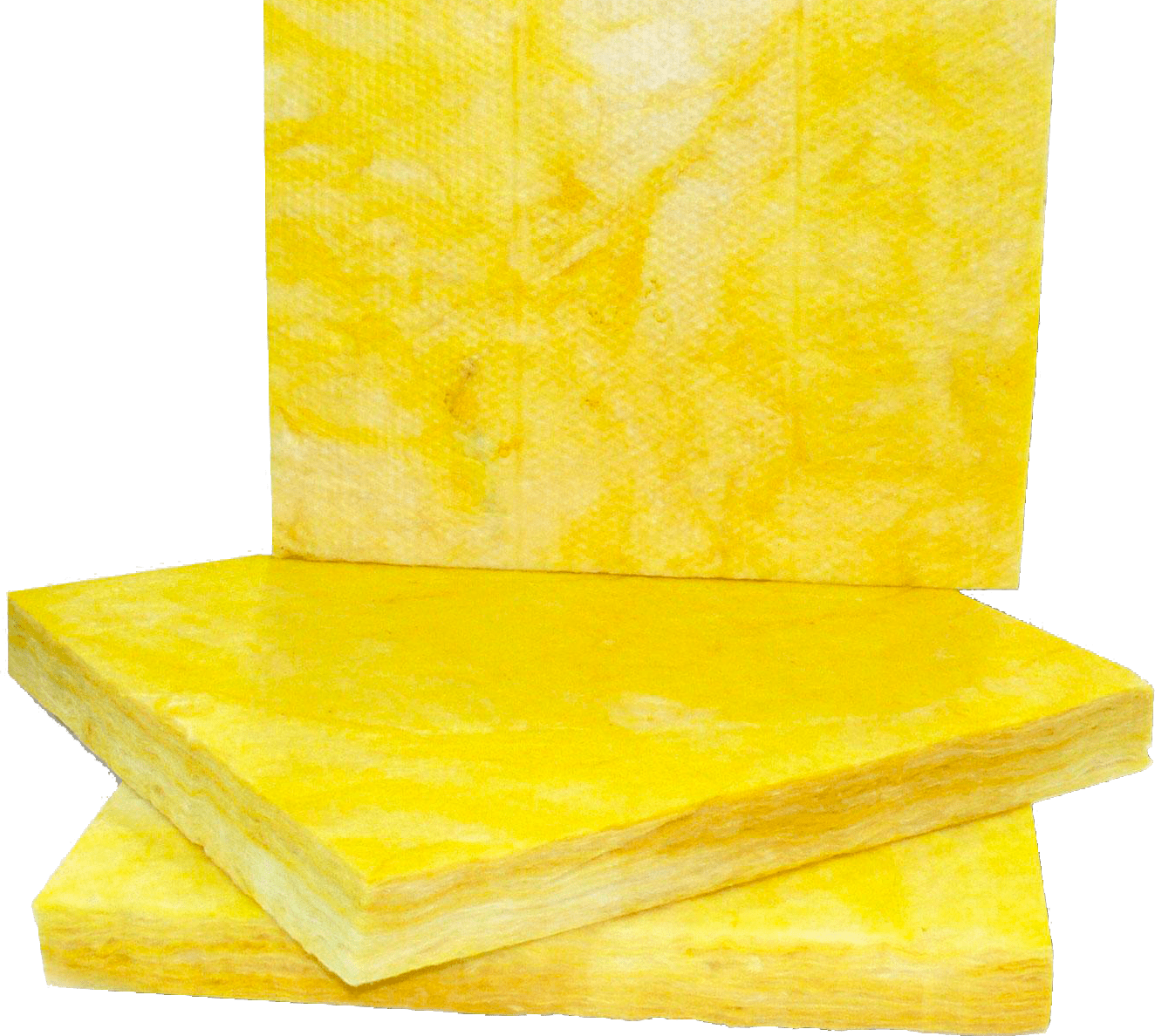

Owens Corning® Fiberglas™ Insul-Quick® insulation is a lightweight insulation composed of glass fibers bonded together in a semi-rigid, board-like form with a special high temperature binder.

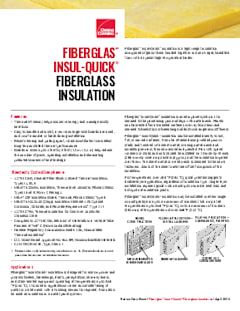

Download Data Sheet

Certifications

SCS Recycled Content

scs global services recycled content badge

Technical Information

Physical Properties

PROPERTY

TEST METHOD

VALUE

Hot Surface Performance

ASTM C411

Up to 850°F (454°C)
Maximum thickness 6" (152 mm)
Up to 650°F (343°C)
Maximum thickness 8" (203 mm)

Compressive Strength
at 10% Deformation
at 20% Deformation

ASTM C165

70 lb/ft2 (3350 Pa)
130 lb/ft2 (6225 Pa)

Nominal Density

ASTM C303

3.0 pcf (48 kg/m3)

Water Vapor Sorption

ASTM C1104

< 2.0% by weight, at 120°F (49°C), 95% R.H.

Shot Content

ASTM C1335

Negligible

Composite Surface Burning Characteristics1
Flame Spread
Smoke Developed

UL 723, ASTM E84 or CAN/ULC-S102

25
50

Standards Codes Compliance

  • ASTM C612, Mineral Fiber Block & Board Thermal insulation, Types IA, IB, II
  • ASTM C795, Thermal insulation for Use Over Austenitic Stainless Steel2
  • Nuclear Regulatory Commission Guide 1.36, Non-Metallic Thermal insulation2
  • U.S. Coast Guard Approval No. 164.109, Noncombustible Materials
  • CAN/CGSB-51.10–Type 1, Class 1

1. The surface burning characteristics of these products have been determined in accordance with UL 723, ASTM E84 or CAN/ULC-S102. Values are reported to the nearest 5 rating.

2. Preproduction qualification testing complete and on file. Chemical analysis of each production lot required for total conformance.

Applications

  • Flatwork
  • Marine
  • Mechanical Pipe and Equipment
  • Mechanical Pipe and Equipment > Mechanical Equipment & Board
  • Pipe and Equipment
  • Pipe and Equipment > Equipment
  • Pipe and Equipment > Equipment > High Temp/Above Ambient Equipment
  • Pipe and Equipment > Equipment > Mechanical Equipment
  • Pipe and Equipment > Equipment > Mechanical Room
  • Pipe and Equipment > Equipment > Ovens, Boilers, and Furnaces
  • Pipe and Equipment > Process Piping
  • Pipe and Equipment > Process Piping > Direct Buried, Trench, or Underground Piping
  • Piping
  • Piping > Process Piping
  • Tanks
  • Tanks > Ambient and Above Ambient Tanks
  • Tanks > Ambient and Above Ambient Tanks > Fresh Water Tanks
  • Tanks > High-Temperature Tanks
  • Tanks > High-Temperature Tanks > High-Temperature Tanks
  • Tanks > High-Temperature Tanks > Hot Oil and Asphalt Storage Tanks
  • Tanks > High-Temperature Tanks > Waste Water Digesters
  • Vessels and Spheres
  • Vessels and Spheres > Vessels
  • Vessels and Spheres > Vessels > Low-Temperature Vessels
