Ultrablade® Multiaxial | Owens Corning Composites
Talk to an Expert

SUPERIOR SOLUTIONS

Owens Corning’s patented H-glass technology that has revolutionized the wind industry for more than a decade. Ultrablade® Multiaxial fabrics are specially designed to enable load reduction on bolts and extend blade lengths.

Talk to an Expert

Specifications and Literature

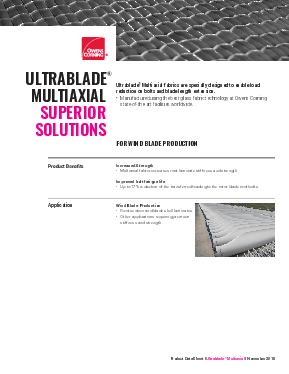

UltraBlade Multiaxial Fabric Data Sheet
UltraBlade Multiaxial Fabric Data Sheet

UltraBlade Multiaxial Fabric Data Sheet

| 617 KB

Performance Attributes

Increased Strength Icon

Increased Strength

Improved Bolt Fatigue Life Icon

Improved Bolt Fatigue Life

  • Increased Strength

    Multiaxial fabric increases root laminate stiffness and strength.

  • Improved Bolt Fatigue Life

    Up to 17% reduction of the transferred loading to the rotor blade root bolts.

APPLICATIONS

  • Root section and blade shell laminates.
  • Other applications requiring superior performance.

Technical Information

Technical Characteristics

Ultrablade® Multiaxial Product Range
ULTRABLADE® MULTIAXIAL TYPE APPLICATIONS
Ultrablade® TLX 800-2000 Multiaxial Root Section
Ultrablade® TTX 800-2000 Multiaxial Root Section
Ultrablade® BX 600-1200 Biaxial Shell Laminate
Static Property of TTX1500 (as an example)
Laminate fabricated with RIMR035c/RIMH037, testing conducted by Momentive Specialty Chemicals - Stuttgart.
TEST NORM MODULUS (GPA) MEAN STRENGTH (MPA) CHARACTERISTICS STRENGTH (MPA) ELONGATION (%) FWF (%)
0" Tension ISO 527-4 41.10 830.00 770.00 2.23 74.60
0" Compression ISO 14126 39.60 616.00 509.00 1.58 72.50
90° Tension ISO 527-4 12.90 53.80 46.90 0.71 72.90
Shear (G12) ISO 14129 5.0 26.90 23.60 72.90
ILSS ISO 14130 54.60 52.20

Product Availability (Standard Reference)

Ultrablade® is available in all regions.

Packaging

Available upon request.



    Regional Availability

    Ultrablade® Multiaxial is available worldwide.

    Applications

    • Wind Energy > Root
    • Wind Energy > Shear Web
    • Wind Energy > Shell
    • Wind Energy > Spar Cap
    • Wind Energy > Trailing Edge
